1820

1820

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

This design features 3 bedrooms and 2 1/2 baths, covered front porch, large eat-in kitchen with breakfast bar, formal entry foyer, formal dining room, master suite and bonus room.

Designer Plan Number 18201820
Bedrooms 3
Bathrooms 2.5
Plan Width 66 ' 10 "
Plan Depth 38 ' 10 "
Main Ceiling 8 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Code B
Roof Pitch 9 in 12
2nd Roof Pitch 12 in 12
Floors 2
First Floor Area 1370 sq.ft
2nd Floor Area 516 sq.ft
Bonus Floor Area 281 sq.ft
Area Heated 1886 sq.ft
Total Living Area 1886 sq.ft
Total Plan Area 2709 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

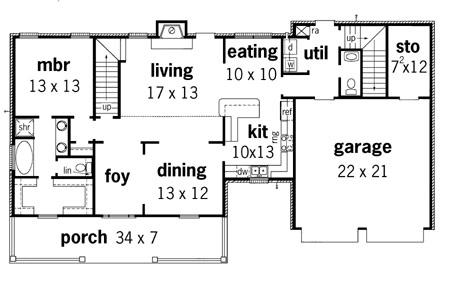

1820 Floorplan 1
