1824

1824

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

4 Bedrooms, 2 Baths
Split Bedroom Plan
10′ Foot Ceiling in Dining Foyer
& Den
Gourmet Kitchen w/Eating Bar
Oversized Utility w/Laundry & Sink
Large Master Suite w/12′ Raised Ceiling
Covered Front/Rear Porch

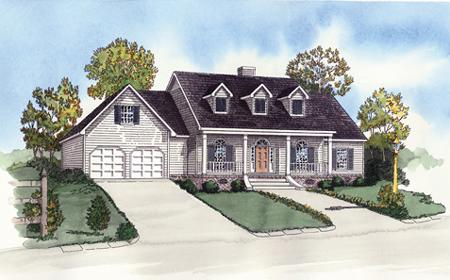

Traditional Southern Exterior w/Arched
Top Windows & 10′ Ceiling Porches

Designer Plan Number 18241824
Bedrooms 4
Bathrooms 2
Plan Width 70 ' 2 "
Plan Depth 56 ' 0 "
Main Ceiling 9 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 8 in 12
Floors 1
First Floor Area 1872 sq.ft
Area Heated 1872 sq.ft
Total Living Area 1872 sq.ft
Total Plan Area 2826 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

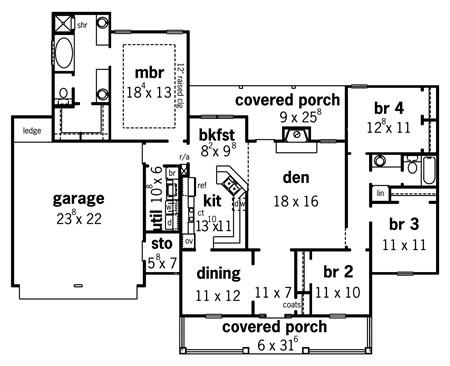

1824 Floorplan 1
