1827

1827

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

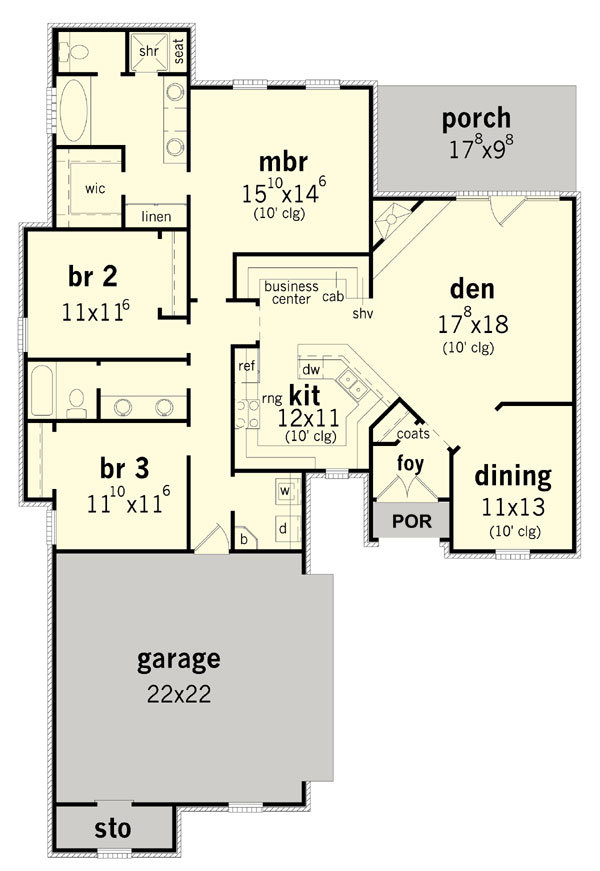

1827 Floorplan 1

Description

Elegant French Tuscany styling with a spacious floor plan! This home features an open living area and an awesome kitchen with built-in, fold out cabinets! A snack bar and eating area complete the kitchen space. The large master suite is privately set to the rear of the plan and offers a large bath with separate shower/whirlpool tub, his/her vanity and big walk-in closet! Start or finish your busy day relaxing on the covered back porch!

Designer Plan Number 18271827
Bedrooms 3
Bathrooms 2
Plan Width 40100 ' 10 "
Plan Depth 343 ' 8 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 9 in 12
2nd Roof Pitch 12 in 12
Floors 1
First Floor Area 1800 sq.ft
Area Heated 1800 sq.ft
Total Living Area 1800 sq.ft
Total Plan Area 2548 sq.ft
Garage Bays 2
Garage Type Attached
