1828

1828

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

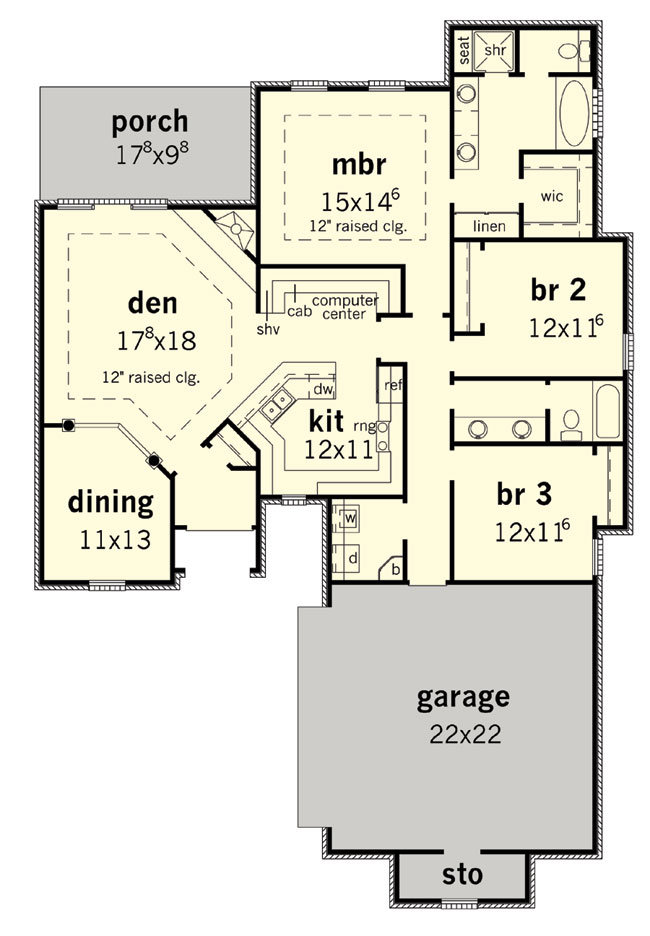

1828 Floorplan 1

Description

3 Bedrooms, 2 Bath Split Plan
Formal Entry Foyer with Coat Closet
Spacious Master w/12′ Raised Ceiling
Large Walk-in Closet & Linen in Master
Open Living Area with Fireplace
12′ Raised Ceiling in Den
Kitchen with Eating Bar & Computer Center
Covered Front Entry
Large Covered Rear Porch
Ample Storage Room

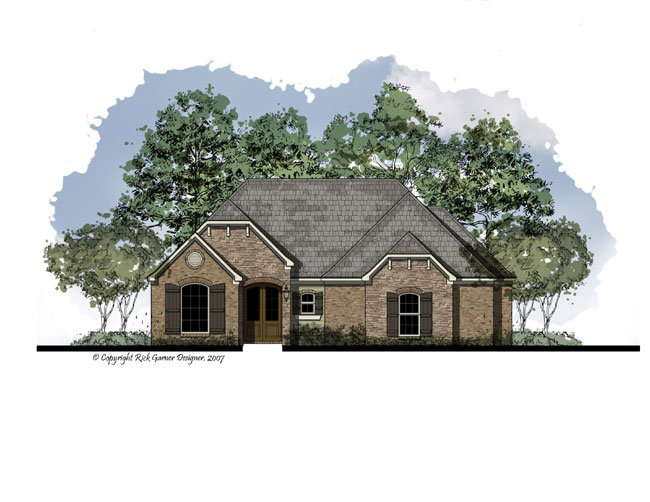

Sophisticated French Tuscany Exterior
NARROW LOT DESIGN

Designer Plan Number 18281828
Bedrooms 3
Bathrooms 2
Plan Width 40100 ' 10 "
Plan Depth 510 ' 6 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 12 in 12
Floors 1
First Floor Area 1800 sq.ft
Bonus Floor Area NULL sq.ft
Area Heated 1800 sq.ft
Total Living Area 1800 sq.ft
Total Plan Area 2548 sq.ft
Garage Bays 1
Garage Type Attached
