1829-2

1829-2

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

3 Bedrooms, 2 Baths,
Open Plan,
Courtyard Entrance Garage,
Raised Ceiling in Master,
14′-0″ Ceiling in Den, Foyer & Dining,
Covered Front and Rear Porches,

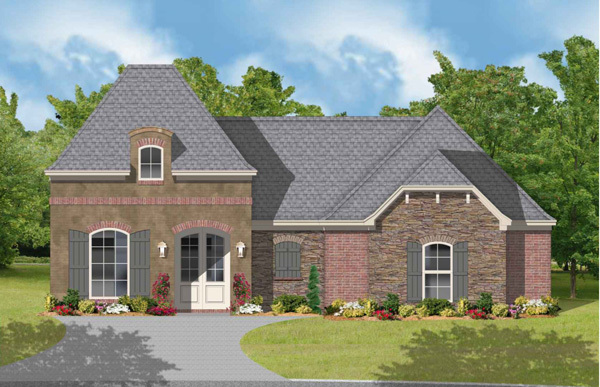

Country French Styling,
Breakfast/flex Space,
Computer Center

Designer Plan Number 1829-21829-2
Bedrooms 3
Bathrooms 2
Plan Width 49 ' 4 "
Plan Depth 71 ' 10 "
Main Ceiling 9 ' 0 "
Second Ceiling 14 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 8 in 12
2nd Roof Pitch 16 in 12
Floors 1
First Floor Area 1859 sq.ft
Area Heated 1859 sq.ft
Total Living Area 1859 sq.ft
Total Plan Area 2604 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

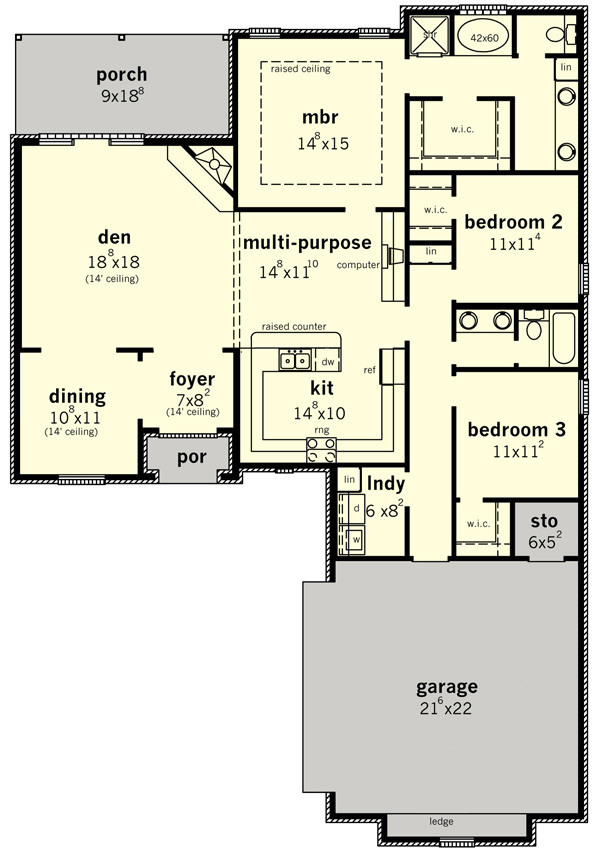

1829-2 Floorplan 1
