1829-3

1829-3

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

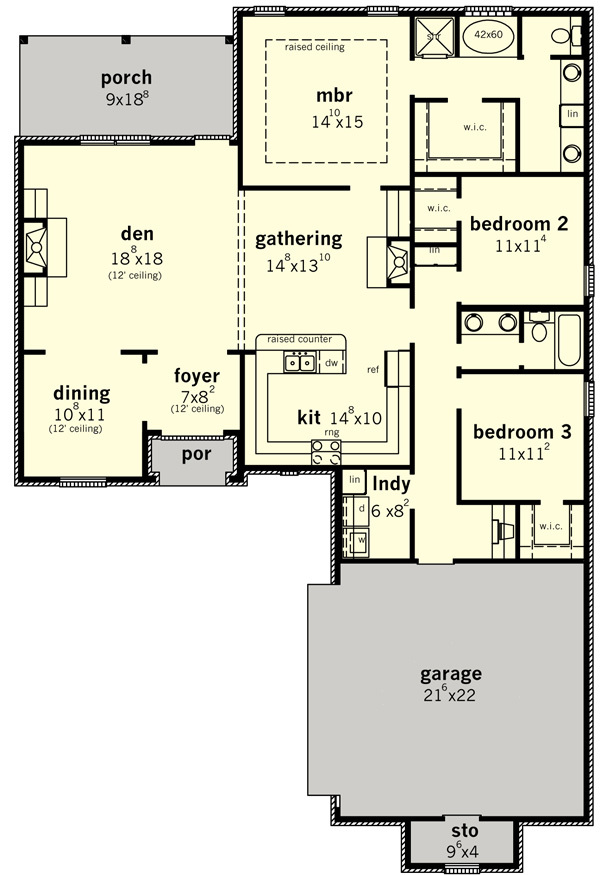

1829-3 Floorplan 1

Description

3 Bedrooms, 2 Baths,
Gathering Room Off Kitchen,
Courtyard Entrance Garage,
Raised Ceiling in Master,
12′-0″ Ceiling in Den, Foyer & Dining,
Covered Front and Rear Porches,
French Styling,
Computer Center,
Walk In Closets in all Bedrooms,
Island Bar in Kitchen,
Two Fireplaces, Split bedroom plan

Designer Plan Number 1829-31829-3
Bedrooms 3
Bathrooms 2
Plan Width 4093 ' 8 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 8 in 12
2nd Roof Pitch 16 in 12
Floors 1
First Floor Area 1920 sq.ft
Area Heated 1920 sq.ft
Total Living Area 1920 sq.ft
Total Plan Area 2648 sq.ft
Garage Bays 2
Garage Type Attached
