1830

1830

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

3 Bedrooms, 2.5 Bath
Formal Entry Foyer w/10′ Ceiling
Spacious Master
Open Den w/Fireplace
Spacious Kitchen with Eating Bar
Covered Front & Rear Porch
Large Utility w/Broom Closet

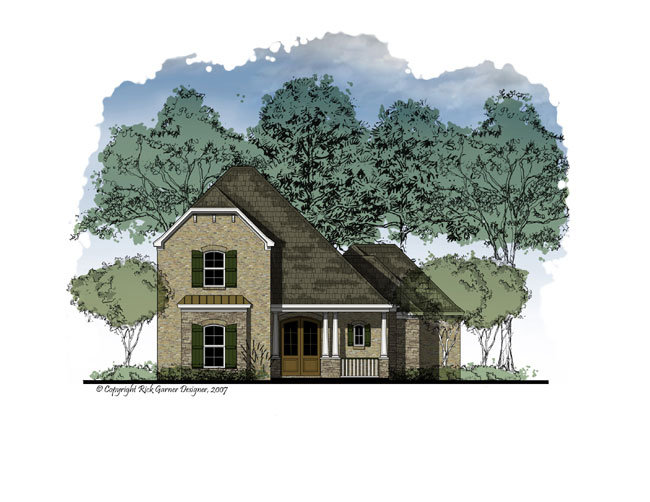

Sophisticated French Tuscany Exterior
NARROW LOT DESIGN

Designer Plan Number 18301830
Bedrooms 3
Bathrooms 2.5
Plan Width 41 ' 0 "
Plan Depth 75 ' 8 "
Main Ceiling 9 ' 0 "
Second Ceiling 10 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 12 in 12
Floors 2
First Floor Area 1446 sq.ft
2nd Floor Area 444 sq.ft
Bonus Floor Area NULL sq.ft
Area Heated 1835 sq.ft
Total Living Area 1835 sq.ft
Total Plan Area 2691 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

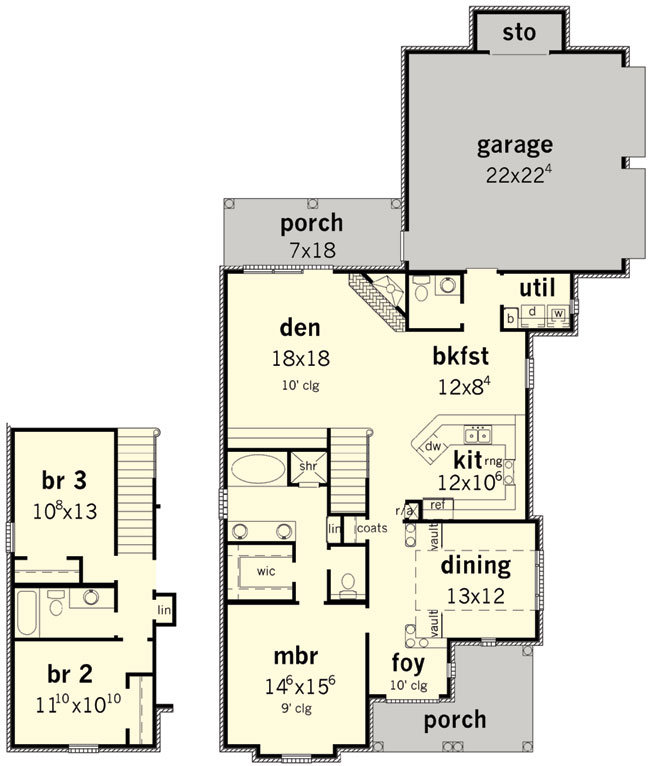

1830 Floorplan 1
