PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

3 Bedrooms, 2.5 Bath
Formal Entry Foyer
Spacious Master w/His/Her Bath
Den w/Fireplace
Spacious Kitchen with Eating Bar
Covered Front & Rear Porch
Large Utility w/Broom Closet

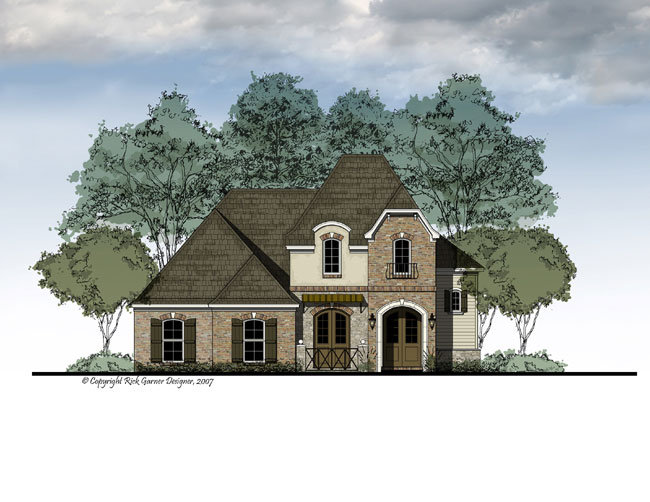

Sophisticated French Tuscany Exterior
NARROW LOT DESIGN

Designer Plan Number 18311831
Bedrooms 3
Bathrooms 2.5
Plan Width 46 ' 5 "
Plan Depth 65 ' 8 "
Main Ceiling 9 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 18 in 12
Floors 2
First Floor Area 1396 sq.ft
2nd Floor Area 477 sq.ft
Bonus Floor Area NULL sq.ft
Area Heated 1873 sq.ft
Total Living Area 1873 sq.ft
Total Plan Area 3023 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

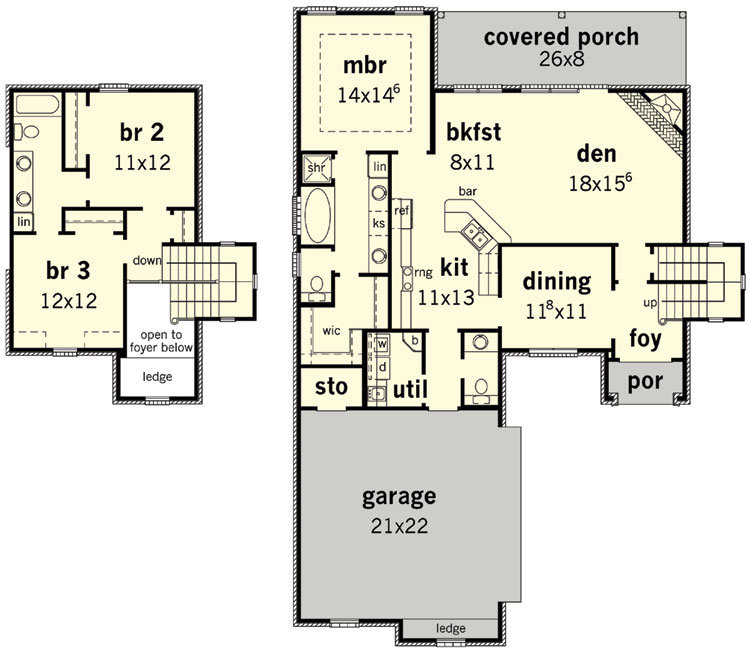

1831 Floorplan 1
