1833

1833

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

3 Bedrooms, 2 Bath Split Plan
Formal Entry Foyer
Open Living Area w/ Large Den
Spacious Kitchen with Eating Bar
Built-in Computer/Work Center
Covered Front & Rear Porch
Large Utility

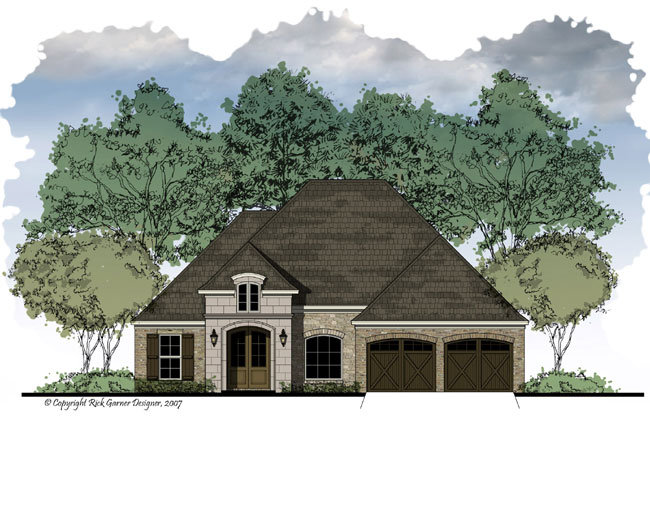

Sophisticated French Tuscany Exterior
NARROW LOT DESIGN

Designer Plan Number 18331833
Bedrooms 3
Bathrooms 2
Plan Width 50 ' 4 "
Plan Depth 66 ' 10 "
Main Ceiling 9 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 12 in 12
Floors 1
First Floor Area 1892 sq.ft
Area Heated 1892 sq.ft
Total Living Area 1892 sq.ft
Total Plan Area 2672 sq.ft
Garage Bays 2
Garage Type Attached
otherplans 1632,1633,1634,1635,1637,1638,1717,1719,1720,1721,
designer 42

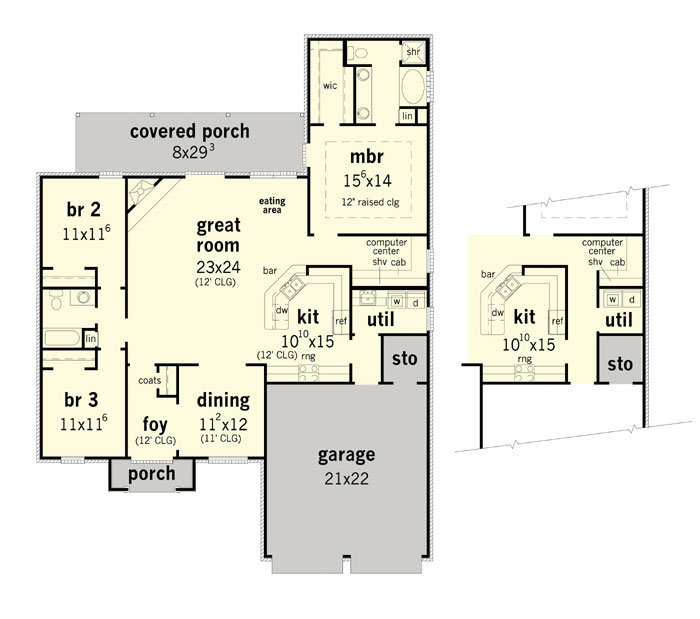

1833 Floorplan 1
