1834

1834

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

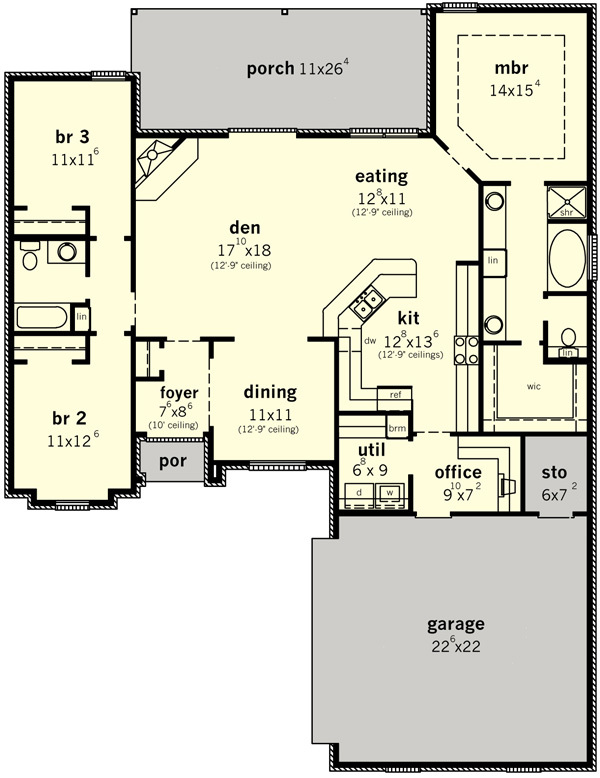

1834 Floorplan 1

Description

3 Bedrooms, 2 Baths, Open Plan,
Split Bedroom Plan,
Raised Ceiling in Master,
12′-9″ Ceilings in Den, Dining, Bkfst & Kit,
10′ Ceiling in Foyer,
Covered Front and Rear Porches,
Elegant French Styling,
Separate Office,
Garden Tub & Larger Shower in Master Bath,
Courtyard Garage

Designer Plan Number 18341834
Bedrooms 3
Bathrooms 2
Plan Width 42600 ' 10 "
Plan Depth 343 ' 8 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 9 in 12
2nd Roof Pitch 12 in 12
Floors 1
First Floor Area 1842 sq.ft
Area Heated 1842 sq.ft
Total Living Area 1842 sq.ft
Total Plan Area 2700 sq.ft
Garage Bays 2
Garage Type Attached
