1922-2

1922-2

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

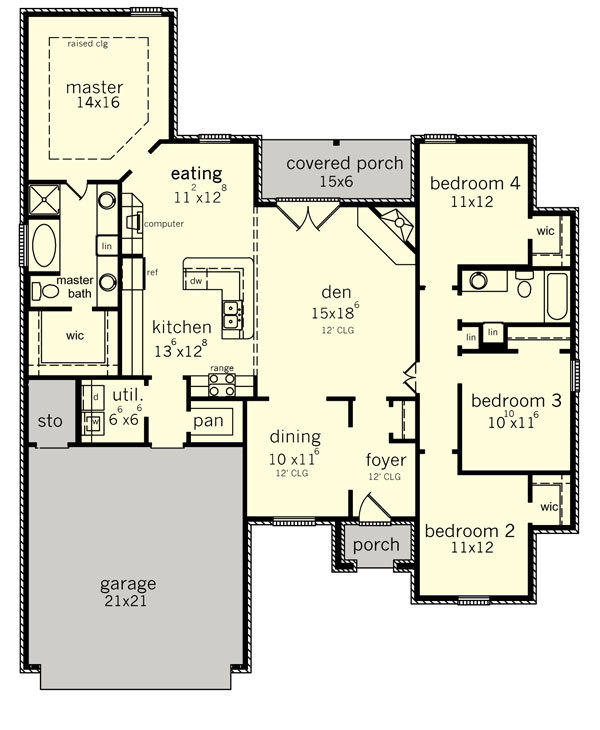

1922-2 Floorplan 1

Description

4 Bedrooms, 2 Baths,
Split Bedroom Plan,
Raised Ceiling in Master. 12′ Ceilings in Den, Dining & Foyer.
Covered Front and Rear Porches.
Courtyard Entrance Garage.
Separate Utility and Storage.
Computer Area /Flex Space.

Designer Plan Number 1922-21922-2
Bedrooms 4
Bathrooms 2
Plan Width 43434 ' 2 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 9 in 12
2nd Roof Pitch 14 in 12
Floors 1
First Floor Area 1909 sq.ft
Area Heated 1909 sq.ft
Total Living Area 1909 sq.ft
Total Plan Area 2507 sq.ft
Garage Bays 2
Garage Type Attached
