2007

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

This classic Louisiana styled home with its blend of stucco and brick gives the look and feel of a much larger home. This plan features, 3 bedrooms and 2 baths in a split plan layout. The great room features a vaulted ceiling, built-in cabinets and fireplace. The master suite is located to the right and rear of the plan and features private bath with separate shower and walk-in closets. The spacious kitchen offers a large breakfast area with eating bar. This plan is completed with a full size two-car garage, trash ledge, and built-in cabinets and shelves.

Designer Plan Number 20072007
Bedrooms 3
Bathrooms 2
Plan Width 70 ' 10 "
Plan Depth 62 ' 5 "
Main Ceiling 9 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code C
Roof Pitch 10 in 12
Floors 1
First Floor Area 2045 sq.ft
Area Heated 2045 sq.ft
Total Living Area 2045 sq.ft
Total Plan Area 2961 sq.ft
Garage Bays 2
Garage Type Attached
otherplans 2007b
designer 42

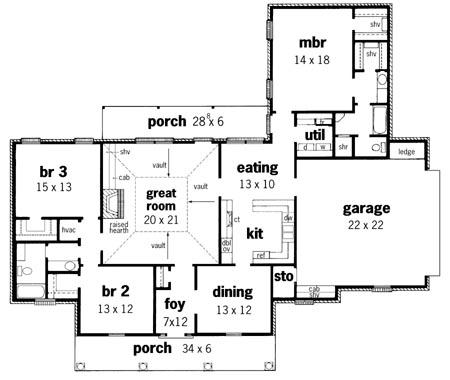

2007 Floorplan 1
