Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.
This two story traditional styled home offers room for the growing family. This plan features, 3 bedrooms and 3 baths, formal entry foyer and dining room, spacious den with fireplace and built-in cabinets, large eat-in kitchen with breakfast bar, master bath with separate shower and whirlpool tub, double vanity and spacious walk-in closet, oversized utility room and covered front and rear porches. This plan also features a bonus room.
| Designer Plan Number | 22062206 |
|---|---|
| Bedrooms | 3 |
| Bathrooms | 3 |
| Plan Width | 64 ' 10 " |
| Plan Depth | 55 ' 10 " |
| Main Ceiling | 8 ' 0 " |
| Second Ceiling | 0 ' 0 " |
| Foundation Slab | yes |
| foundation Crawl Space | yes |
| Foundation Basement Additional | yes |
| Code | C |
| Roof Pitch | 12 in 12 |
| 2nd Roof Pitch | 8 in 12 |
|---|---|
| Floors | 2 |
| First Floor Area | 1777 sq.ft |
| 2nd Floor Area | 487 sq.ft |
| Bonus Floor Area | 276 sq.ft |
| Area Heated | 2264 sq.ft |
| Total Living Area | 2264 sq.ft |
| Total Plan Area | 3457 sq.ft |
| Garage Bays | 2 |
| Garage Type | Attached |
| designer | 42 |

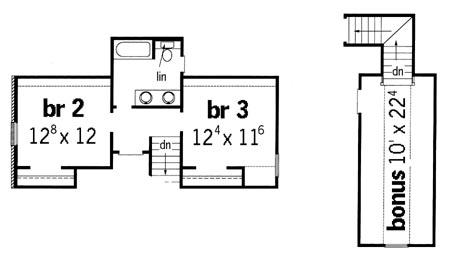

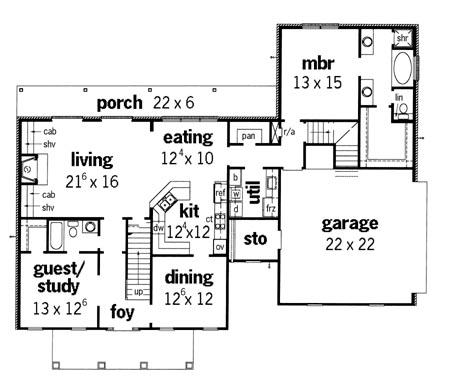

Floorplan 1
