2309

2309

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

4 Bedrooms, 2.5 Baths Split Plan
10′ Ceilings in Bedroom 2 & Dining
10′ Raised Ceiling in Master/Den
12′ Ceiling in Foyer
Open Columns in Dining
Large Gourmet Kitchen/Breakfast
Spacious Utility w/Built-In Cabinets
Classic Country- French Styling W/Clay
Tile Hips & Ridges

Designer Plan Number 23092309
Bedrooms 4
Bathrooms 2.5
Plan Width 64 ' 10 "
Plan Depth 54 ' 10 "
Main Ceiling 9 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code C
Roof Pitch 9 in 12
2nd Roof Pitch 14 in 12
Floors 1
First Floor Area 2387 sq.ft
Area Heated 2387 sq.ft
Total Living Area 2387 sq.ft
Total Plan Area 3075 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

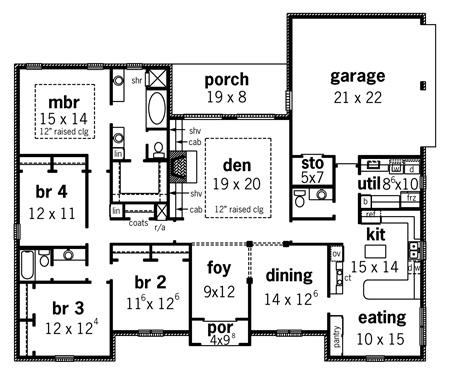

2309 Floorplan 1
