2407

2407

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

12′ raised ceiling in master bedroom, gourmet kitchen w/breakfast bar,walk-in closets in all bedrooms.

Designer Plan Number 24072407
Bedrooms 4
Bathrooms 3
Plan Width 57 ' 0 "
Plan Depth 56 ' 0 "
Main Ceiling 9 ' 0 "
Second Ceiling 8 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code C
Roof Pitch 12 in 12
2nd Roof Pitch 10 in 12
Floors 2
First Floor Area 1849 sq.ft
2nd Floor Area 579 sq.ft
Area Heated 2428 sq.ft
Total Living Area 2428 sq.ft
Total Plan Area 3383 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

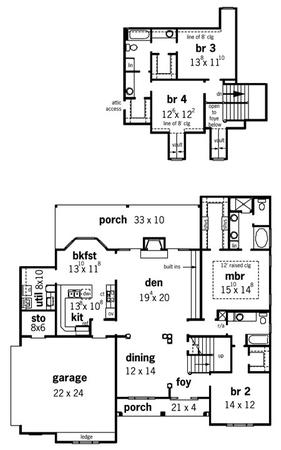

2407 Floorplan 1
