2504

2504

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

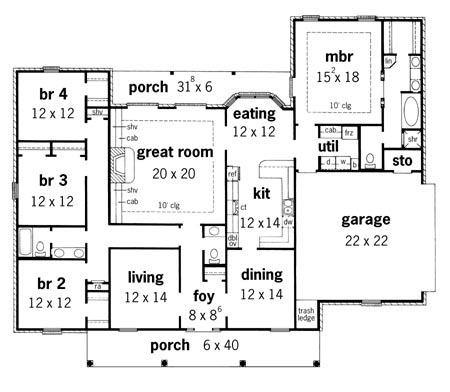

2504 Floorplan 1

Description

This sophisticated Louisiana styled home combines a blend of stucco and brick giving the look of a much larger home. This plan features, 4 bedrooms and 2 ? baths, raised ceiling in the great room and master bedroom, large open gourmet kitchen, formal living and dining area, walk-in closets in three bedrooms.

Designer Plan Number 25042504
Bedrooms 4
Bathrooms 2.5
Plan Width 58434 ' 2 "
Plan Depth 427 ' 1 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code C
Roof Pitch 8 in 12
2nd Roof Pitch 10 in 12
Floors 1
First Floor Area 2551 sq.ft
Area Heated 2551 sq.ft
Total Living Area 2551 sq.ft
Total Plan Area 3515 sq.ft
Garage Bays 2
Garage Type Attached
