2507

2507

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

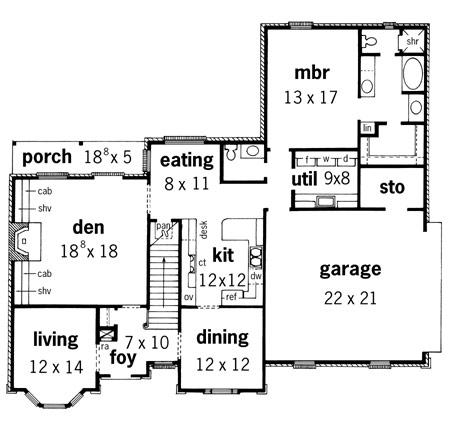

2507 Floorplan 1

Description

The combination of brick and stucco, along with its quoins and bay window with copper hood is a classic statement of sophistication. This plan features, 4 bedrooms and 3 ? baths, formal living and dining, large kitchen and breakfast area, spacious master suite with separate shower and whirlpool tub.

Designer Plan Number 25072507
Bedrooms 4
Bathrooms 3.5
Plan Width 47600 ' 10 "
Plan Depth 427 ' 1 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code C
Roof Pitch 12 in 12
Floors 2
First Floor Area 1667 sq.ft
2nd Floor Area 932 sq.ft
Area Heated 2599 sq.ft
Total Living Area 2599 sq.ft
Total Plan Area 3205 sq.ft
Garage Bays 2
Garage Type Attached
