2509

2509

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

4 Bedrooms, 3 Baths
Raised Ceiling in Master
Gourmet Kitchen w/ Island & Raised Bar
Large Walk In Closet in Master
Oversized Utility Room
Covered Rear and Front Porches
French Acadian

Designer Plan Number 25092509
Bedrooms 4
Bathrooms 3
Plan Width 71 ' 10 "
Plan Depth 67 ' 3 "
Main Ceiling 12 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code C
Roof Pitch 9 in 12
2nd Roof Pitch 12 in 12
Floors 1
First Floor Area 2456 sq.ft
Area Heated 2456 sq.ft
Total Living Area 2456 sq.ft
Total Plan Area 3371 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

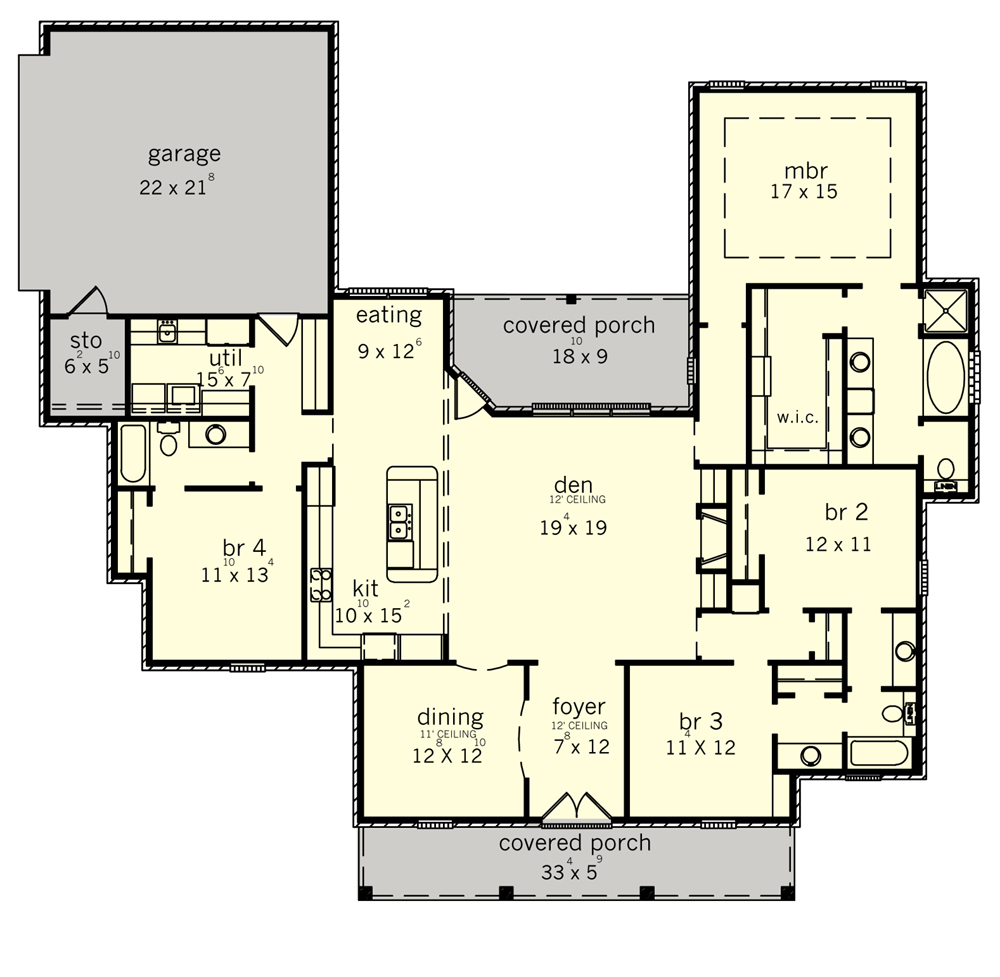

2509 Floorplan 1
