2511

2511

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

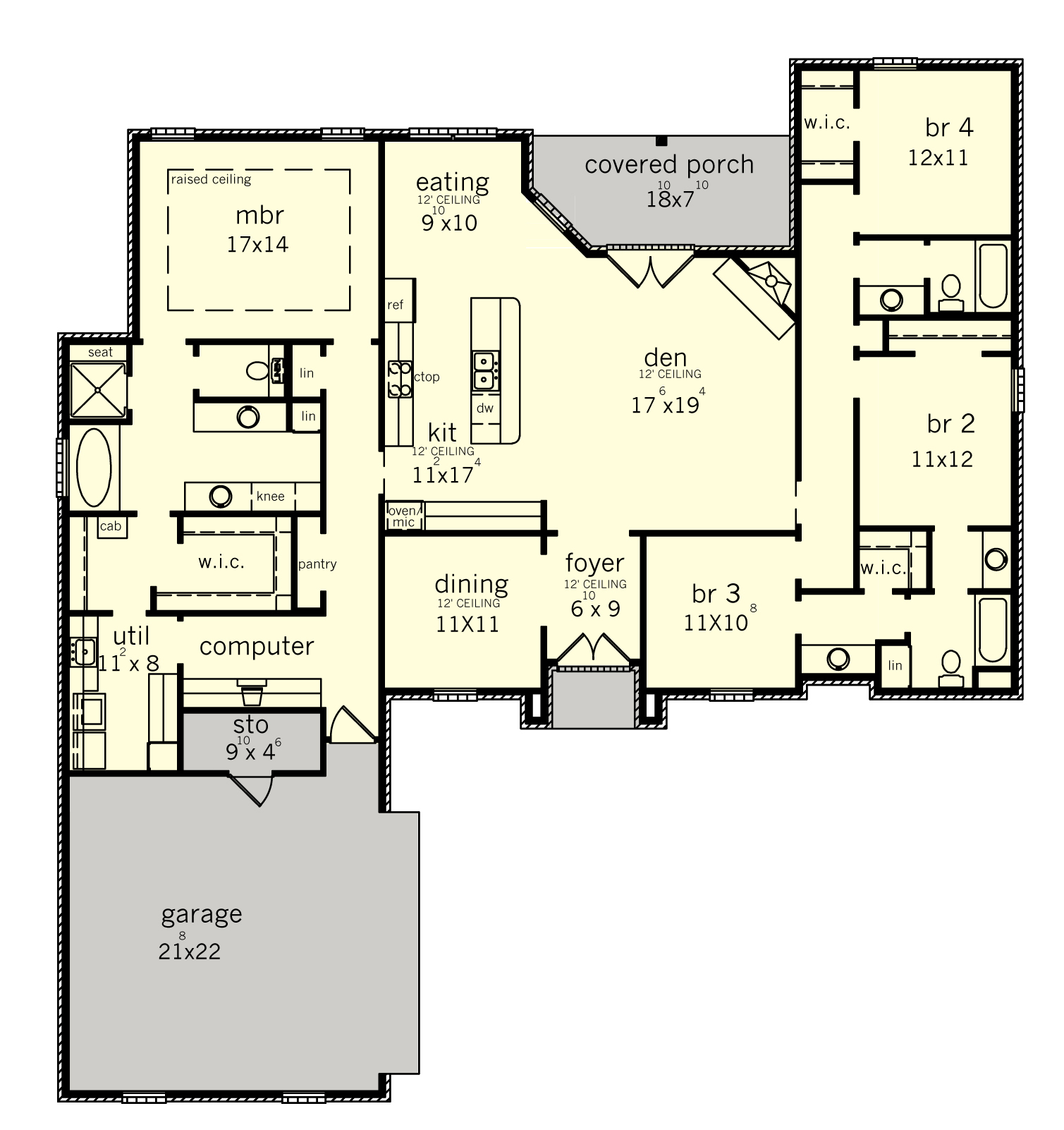

2511 Floorplan 1

Description

4 Bedrooms, 3 Baths
Split Bedroom Plan
Jack and Jill Bath
Raised Ceiling in Master
Gourmet Kitchen w/ Island & Raised Bar
Large Walk In Closet in Master
Oversized Utility Room
Covered Rear Porch
Computer Niche
Large Shower in Master with Seat
Elegant French Styling

Designer Plan Number 25112511
Bedrooms 4
Bathrooms 3
Plan Width 5510 ' 4 "
Plan Depth 677 ' 4 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code C
Roof Pitch 9 in 12
2nd Roof Pitch 12 in 12
Floors 1
First Floor Area 2511 sq.ft
Area Heated 2511 sq.ft
Total Living Area 2511 sq.ft
Total Plan Area 3248 sq.ft
Garage Bays 2
Garage Type Attached
