2601A

2601A

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification
2601A Floorplan 1

Description

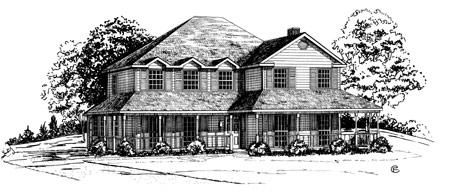

This plan features 4 bedrooms and 2 1/2 baths, formal dining and living area, separate entry foyer, open kitchen with bay window in eating area, wet bar off of den, fireplace flanked by cabinets and shelves in den, covered wrap around porch and rear patio.

Designer Plan Number 2601A2601A
Bedrooms 4
Bathrooms 2.5
Plan Width 5760 ' 8 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code C
Roof Pitch 8 in 12
Floors 2

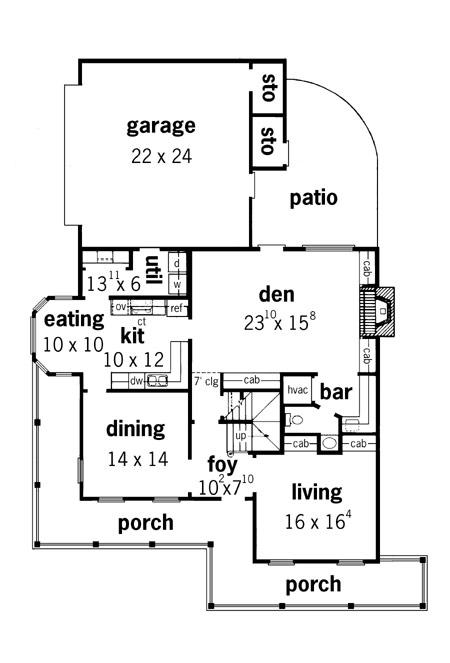

First Floor Area 1386 sq.ft

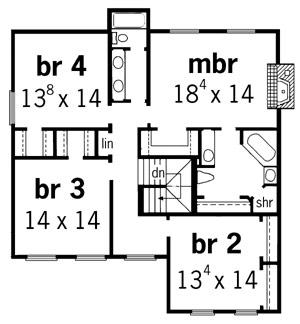

2nd Floor Area 1265 sq.ft
Area Heated 2651 sq.ft
Total Living Area 2651 sq.ft
Total Plan Area 3653 sq.ft
Garage Bays 2
Garage Type Attached
