2613

2613

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

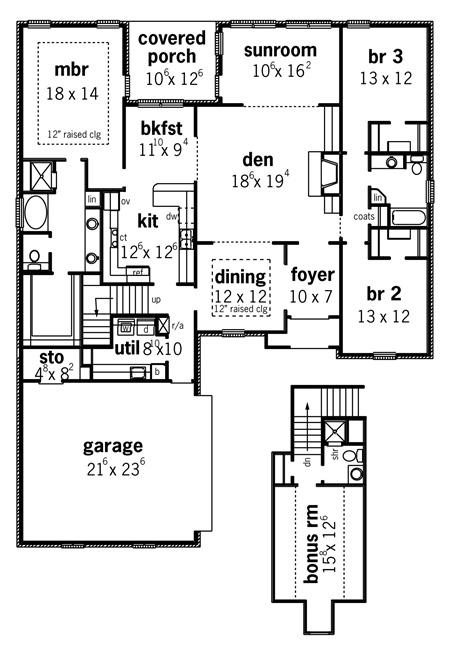

2613 Floorplan 1

Description

3 Bedroom, 2 Baths
Split Bedroom Plan
12′ Ceiling in Den/Foyer
Spacious Sunroom on Rear
Gourmet Kitchen w/Eating bar
Walk-In Closets All Bedrooms
Covered Front Entrance/Rear Porch
Classic Country-French Exterior
Optional Bonus Room

Designer Plan Number 26132613
Bedrooms 3
Bathrooms 2
Plan Width 4593 ' 8 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code C
Roof Pitch 6 in 12
2nd Roof Pitch 14 in 12
Floors 1
First Floor Area 2317 sq.ft
Area Heated 2317 sq.ft
Total Living Area 2317 sq.ft
Total Plan Area 3340 sq.ft
Garage Bays 2
Garage Type Attached
