PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

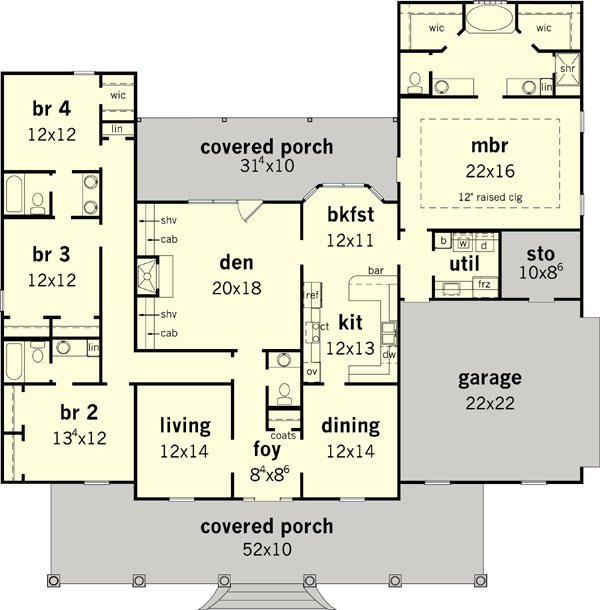

2616 Floorplan 1

Description

Welcome Home to Southern Charm! This beautiful plan features a 4 bedroom split plan, secluded master suite with whirlpool tub, double closets and double vanity. Bedrooms 3 and 4 offer a jack and jill bath. Spacious living area, large kitchen and spacious utility area with freezer space and covered front and rear porches make this a plan ready for you to call home!

Designer Plan Number 26162616
Bedrooms 4
Bathrooms 3.5
Plan Width 5843 ' 4 "
Plan Depth 10 ' 0 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code C
Roof Pitch 10 in 12
2nd Roof Pitch 4 in 12
Floors 1
First Floor Area 2683 sq.ft
Area Heated 2683 sq.ft
Total Living Area 2683 sq.ft
Total Plan Area 4106 sq.ft
Garage Bays 2
Garage Type Attached
