2712

2712

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

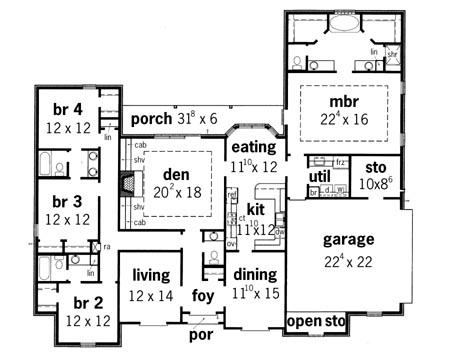

2712 Floorplan 1

Description

This elegant French styled home is accented by its combination of stucco and brick exterior. This plan features, 4 bedrooms and 3 baths, raised ceiling in the den and master bedroom, huge master suite with elegant oversized bath, den with fireplace flanked by shelves and cabinets, gourmet kitchen with eating bar, bay window in breakfast area, large utility and storage area.

Designer Plan Number 27122712
Bedrooms 4
Bathrooms 3
Plan Width 58434 ' 2 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code C
Roof Pitch 12 in 12
Floors 1
First Floor Area 2715 sq.ft
Area Heated 2715 sq.ft
Total Living Area 2715 sq.ft
Total Plan Area 3522 sq.ft
Garage Bays 2
Garage Type Attached
