2713

2713

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

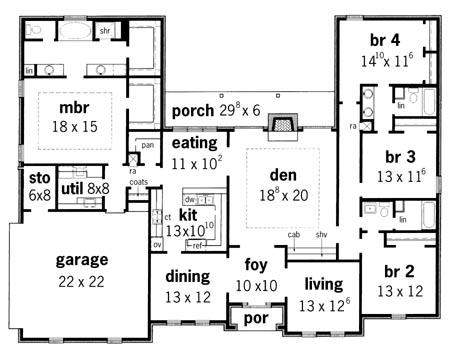

2713 Floorplan 1

Description

This elegant traditional styled home is accented by its quoins, arched top windows and keystones.
This plan features, 4 bedrooms and 3 baths in a split fashion, raised ceiling in the den and master bedroom, gourmet kitchen with breakfast bar and walk-in pantry, fireplace in den flanked by French doors that open to the covered rear porch.

Designer Plan Number 27132713
Bedrooms 4
Bathrooms 3
Plan Width 59267 ' 6 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code C
Roof Pitch 12 in 12
2nd Roof Pitch 9 in 12
Floors 1
First Floor Area 2733 sq.ft
Area Heated 2733 sq.ft
Total Living Area 2733 sq.ft
Total Plan Area 3514 sq.ft
Garage Bays 2
Garage Type Attached
