2715

2715

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

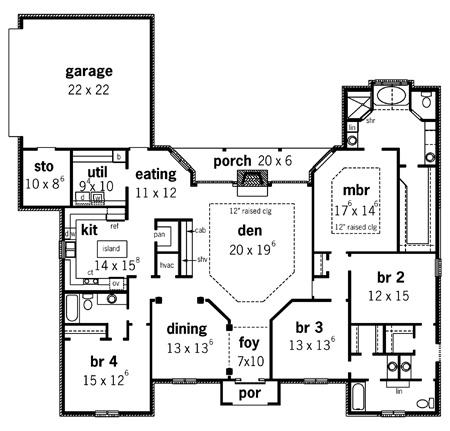

2715 Floorplan 1

Description

4 Bedrooms, 3 Baths
10′ Raised Ceiling in Den and Master
Luxurious Master Suite
Gourmet Kitchen with Island/Pantry
Covered Front & Back Porch
Stylish French Tuscany Exterior with
Clay Tile Hips/Ridges

Designer Plan Number 27152715
Bedrooms 4
Bathrooms 3
Plan Width 58434 ' 2 "
Plan Depth 343 ' 8 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code C
Roof Pitch 9 in 12
Floors 1
First Floor Area 2726 sq.ft
Area Heated 2726 sq.ft
Total Living Area 2726 sq.ft
Total Plan Area 3494 sq.ft
Garage Bays 2
Garage Type Attached
