2807

2807

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

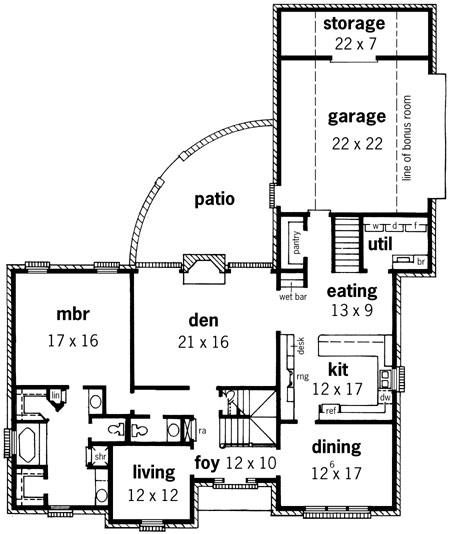

2807 Floorplan 1

Description

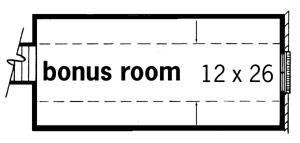

The classic blend of stucco and brick accented by arched top windows, shutters and brick quoins gives this design an air of elegance. This plan features4 bedrooms and 3 ? baths, two story grand foyer, spacious master suite, large kitchen and breakfast area with walk-in pantry, formal living and dining area. This plan also offers a bonus room over the full size two-car garage.

Designer Plan Number 28072807
Bedrooms 4
Bathrooms 3.5
Plan Width 50100 ' 10 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code C
Roof Pitch 8 in 12
2nd Roof Pitch 12 in 12
Floors 2
First Floor Area 2115 sq.ft

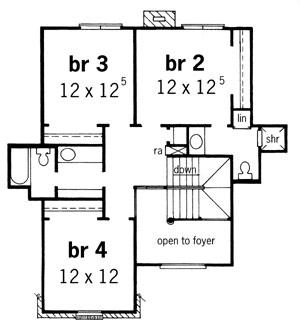

2nd Floor Area 730 sq.ft
Area Heated 2845 sq.ft
Total Living Area 2845 sq.ft
Total Plan Area 3845 sq.ft
Garage Bays 2
Garage Type Attached
