2808

2808

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

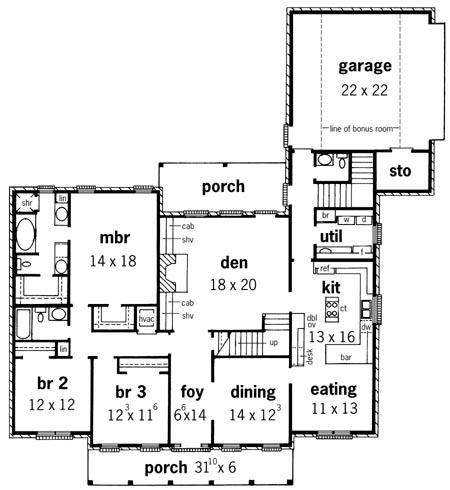

2808 Floorplan 1

Description

This plan is perfect for the growing family. This plan features 5 bedrooms and 3 ? baths large kitchen and breakfast area with breakfast bar, den with fireplace flanked by built-in cabinets and shelves, master suite with whirlpool tub and separate shower, covered front and rear porches. This plan also features a bonus room over the garage.

Designer Plan Number 28082808
Bedrooms 5
Bathrooms 3.5
Plan Width 5427 ' 2 "
Plan Depth 427 ' 1 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code C
Roof Pitch 10 in 12
2nd Roof Pitch 12 in 12
Floors 2
First Floor Area 2263 sq.ft
2nd Floor Area 672 sq.ft
Bonus Floor Area 280 sq.ft
Area Heated 2935 sq.ft
Total Living Area 2935 sq.ft
Total Plan Area 4122 sq.ft
Garage Bays 2
Garage Type Attached
