PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

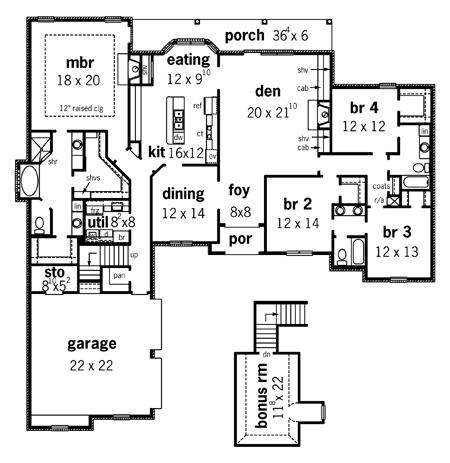

2809 Floorplan 1

Description

4 Bedrooms, 3 Baths
13′-6″ Ceiling in Den/Foyer
10′ Ceiling in Dining/ Bedroom 2
Large Master Suite w/10′ Raised Ceiling
Walk-In Closets All Bedrooms
Gourmet Kitchen w/Eating Bar
Covered Front/Rear Porch
Spacious Utility Room & Pantry
Optional Bonus Room Over Garage
Classic French Tuscany Exterior with
Clay Tile Hips/Ridges

Designer Plan Number 28092809
Bedrooms 4
Bathrooms 3
Plan Width 61767 ' 6 "
Plan Depth 10 ' 0 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code C
Roof Pitch 9 in 12
2nd Roof Pitch 14 in 12
Floors 1
First Floor Area 2818 sq.ft
Area Heated 2818 sq.ft
Total Living Area 2818 sq.ft
Total Plan Area 3807 sq.ft
Garage Bays 2
Garage Type Attached
