PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

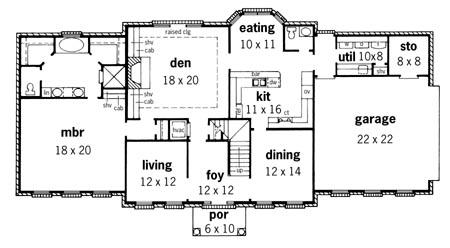

2903 Floorplan 1

Description

This southern traditional styled home is most appealing with its arched top windows and covered front porch. This plan features, 4 bedrooms and 3 ? baths, large master suite, formal living and dining, two story grand foyer, large open kitchen and breakfast area and walk-in closets in all bedrooms.

Designer Plan Number 29032903
Bedrooms 4
Bathrooms 3.5
Plan Width 65100 ' 10 "
Plan Depth 427 ' 1 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code C
Roof Pitch 10 in 12
Floors 2
First Floor Area 2021 sq.ft
2nd Floor Area 976 sq.ft
Area Heated 2997 sq.ft
Total Living Area 2997 sq.ft
Total Plan Area 3605 sq.ft
Garage Bays 2
Garage Type Attached
