2907

2907

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

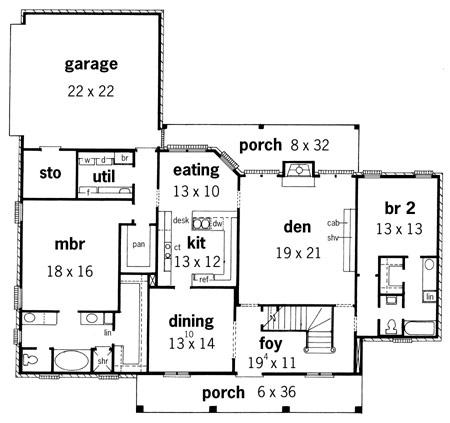

2907 Floorplan 1

Description

This traditional southern styled home is accented by its second story covered balcony and combination of stucco and brick exterior. This plan features, 4 bedrooms and 3 baths, two bedrooms are located on the main floor and two bedrooms on the upper floor, children s den upstairs, large kitchen, breakfast area and walk-in pantry.

Designer Plan Number 29072907
Bedrooms 4
Bathrooms 3
Plan Width 55934 ' 2 "
Plan Depth 427 ' 1 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code C
Roof Pitch 8 in 12
2nd Roof Pitch 12 in 12
Floors 2
First Floor Area 2209 sq.ft
2nd Floor Area 783 sq.ft
Area Heated 2992 sq.ft
Total Living Area 2992 sq.ft
Total Plan Area 4184 sq.ft
Garage Bays 2
Garage Type Attached
