3100

3100

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

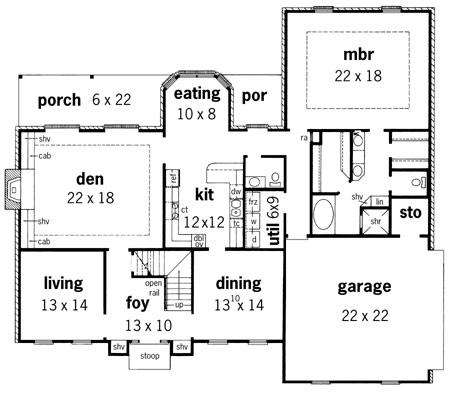

3100 Floorplan 1

Description

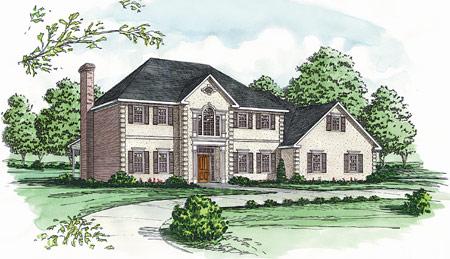

This beautiful traditional styled home is accented by its blend of stucco and brick exterior. This plan features, 4 bedrooms and 3 ? baths, two story grand foyer, oversized master suite, raised ceiling in master bedroom, formal living and dining rooms, large den with raised ceiling and fireplace flanked by cabinets and shelves and spacious kitchen with eating area and breakfast bar.

Designer Plan Number 31003100
Bedrooms 4
Bathrooms 3.5
Plan Width 55934 ' 3 "
Plan Depth 427 ' 1 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code D
Roof Pitch 12 in 12
Floors 2
First Floor Area 2140 sq.ft
2nd Floor Area 1008 sq.ft
Area Heated 3148 sq.ft
Total Living Area 3148 sq.ft
Total Plan Area 3932 sq.ft
Garage Bays 2
Garage Type Attached
