3105

3105

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

4 Bedrooms, 3.5 Baths
Large Master Suite with Raised Ceiling
His/Her Walk-In Closets in Master
Walk-In Closets All Bedrooms
Gourmet Kitchen w/Eating bar
Formal Living & Dining
Covered Rear Porch
Large Utility Room
Traditional Williamsburg Styling

Designer Plan Number 31053105
Bedrooms 4
Bathrooms 3.5
Plan Width 80 ' 10 "
Plan Depth 48 ' 0 "
Main Ceiling 9 ' 0 "
Second Ceiling 8 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code D
Roof Pitch 10 in 12
2nd Roof Pitch 10 in 12
Floors 2
First Floor Area 2084 sq.ft
2nd Floor Area 1108 sq.ft
Area Heated 3192 sq.ft
Total Living Area 3192 sq.ft
Total Plan Area 4113 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

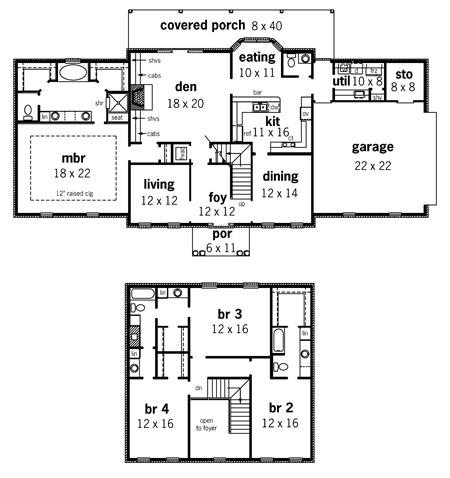

3105 Floorplan 1
