Description

4 Bedrooms, 3.5 Baths
Large Master Suite w/Raised Ceiling
His/Her Walk-In Closets in Master
Sitting Room in Master Suite
Formal Living & Dining
Large Gourmet Kitchen w/Eating Bar
Spacious Utility
Covered Front/Rear Porch
Symmetrical Southern Traditional Styling

Designer Plan Number 32023202
Bedrooms 4
Bathrooms 3.5
Plan Width 80 ' 10 "
Plan Depth 48 ' 0 "
Main Ceiling 9 ' 0 "
Second Ceiling 8 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code D
Roof Pitch 10 in 12
2nd Roof Pitch 10 in 12
Floors 2
First Floor Area 2136 sq.ft
2nd Floor Area 1108 sq.ft
Area Heated 3422 sq.ft
Total Living Area 3422 sq.ft
Total Plan Area 4219 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

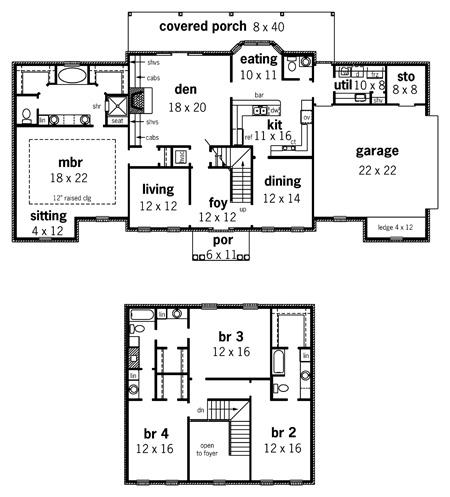

3202 Floorplan 1
