3204

3204

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

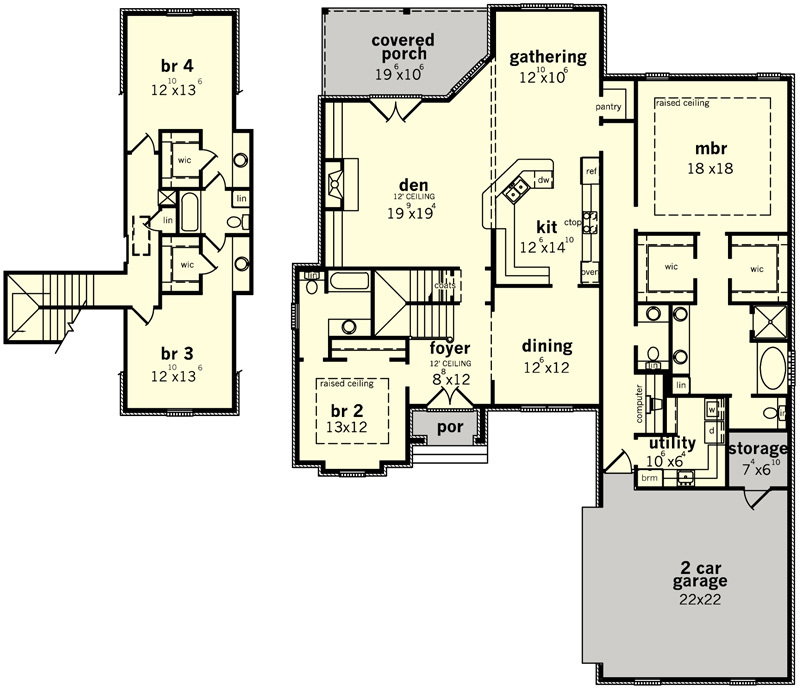

3204 Floorplan 1

Description

4 Bedrooms, 3 Bath
Split Bedroom Plan
Raised Ceiling in Master and Bedroom 2
12′ Ceiling in Den, Foyer
Gathering Room off Kitchen
Large Kitchen with Island and Raised Bar
Large Walk-in Closet in Master
Oversized Utility Room
Computer Niche
Courtyard Entry
Covered Front and Rear Porches
Elegant French Styling

Designer Plan Number 32043204
Bedrooms 4
Bathrooms 3
Plan Width 5260 ' 4 "
Plan Depth 10 ' 0 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code D
Roof Pitch 10 in 12
2nd Roof Pitch 10 in 12
Floors 2
First Floor Area 2507 sq.ft
2nd Floor Area 665 sq.ft
Area Heated 3172 sq.ft
Total Living Area 3172 sq.ft
Total Plan Area 3950 sq.ft
Garage Bays 2
Garage Type Attached
