3301

3301

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

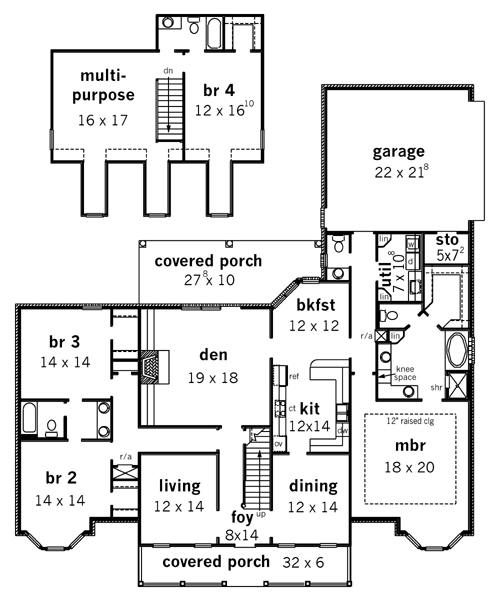

3301 Floorplan 1

Description

Elegant Traditional Southern exterior with 2 bay windows. This plan features a spacious 4 bedroom layout with large master suite. The master bedroom offers a sitting area, whirlpool tub, separate shower, large walk in closet and raised ceiling. Enjoy relaxing in the comfortable den or entertain guests in the formal living and dining area. The upstairs features a large multi-purpose room perfect for anything you wish to add! A covered back porch and welcoming covered front porch complete this beautiful design.

Designer Plan Number 33013301
Bedrooms 4
Bathrooms 3.5
Plan Width 56767 ' 6 "
Plan Depth 760 ' 9 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code D
Roof Pitch 8 in 12
2nd Roof Pitch 12 in 12
Floors 2
First Floor Area 2684 sq.ft
2nd Floor Area 698 sq.ft
Area Heated 3382 sq.ft
Total Living Area 3382 sq.ft
Total Plan Area 4141 sq.ft
Garage Bays 2
Garage Type Attached
