3601

3601

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

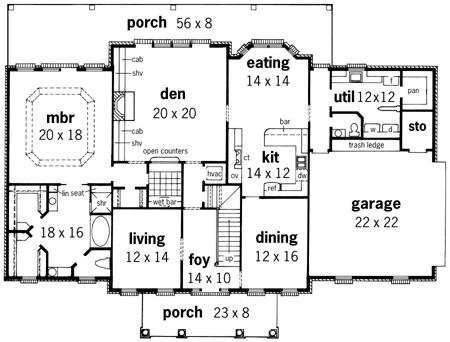

3601 Floorplan 1

Description

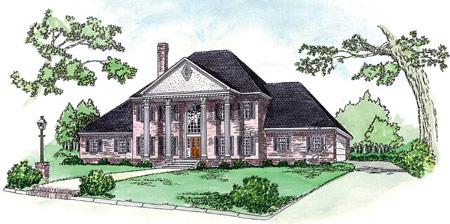

Its columns, shutters and brick exterior accent this beautiful plantation styled home. This plan features, 4 bedrooms and 3 ? baths, two story grand foyer, raised ceiling in master suite, large den with wet bar and fireplace flanked by cabinets and shelves, formal living and dining area, upstairs game room and covered front and rear porches.

Designer Plan Number 36013601
Bedrooms 4
Bathrooms 3.5
Plan Width 61767 ' 6 "
Plan Depth 10 ' 0 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code D
Roof Pitch 8 in 12
2nd Roof Pitch 12 in 12
Floors 2
First Floor Area 2380 sq.ft
2nd Floor Area 1249 sq.ft
Area Heated 3629 sq.ft
Total Living Area 3629 sq.ft
Total Plan Area 4861 sq.ft
