3800

3800

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

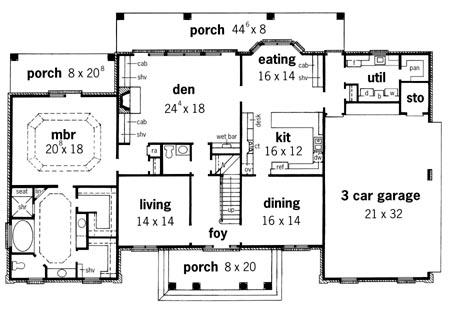

3800 Floorplan 1

Description

This plantation styled home is beautifully accented with the blend of quoins, dentil mould and shutters. This plan features, 4 bedrooms and 3 ? baths, two story grand foyer, elegant master suite with his and her walk-in closets and large master bath, gourmet kitchen and large breakfast area, children s den upstairs and 3 car garage.

Designer Plan Number 38003800
Bedrooms 4
Bathrooms 3.5
Plan Width 68434 ' 2 "
Plan Depth 10 ' 0 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code D
Roof Pitch 10 in 12
Floors 1
First Floor Area 2553 sq.ft
2nd Floor Area 1260 sq.ft
Area Heated 3813 sq.ft
Total Living Area 3813 sq.ft
Total Plan Area 5204 sq.ft
Garage Bays 3
Garage Type Attached
