98084

Description

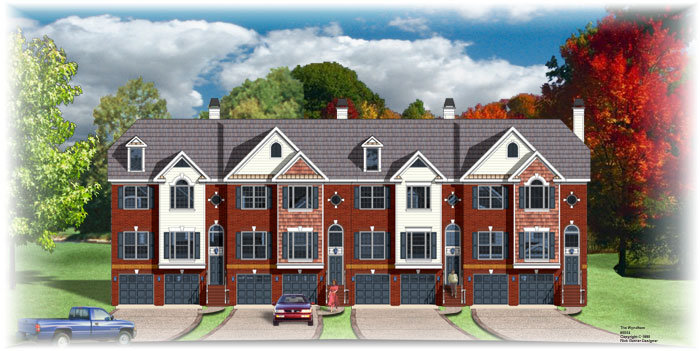

Balancing traditional townhouse character and a deliberately varied unit mix, this four-unit, three-level design creates a strong residential development opportunity for projects seeking larger attached residences within one cohesive building. Two 2-bedroom units, one 3-bedroom unit, and one 4-bedroom unit broaden resident choice while preserving a consistent architectural composition. Each residence provides approximately 2,398 square feet, while the brick façade, gabled roof forms, dormers, and projected window bays establish an enduring, market-facing streetscape.

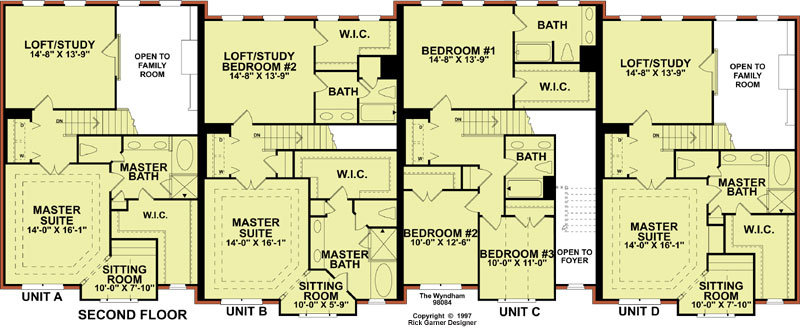

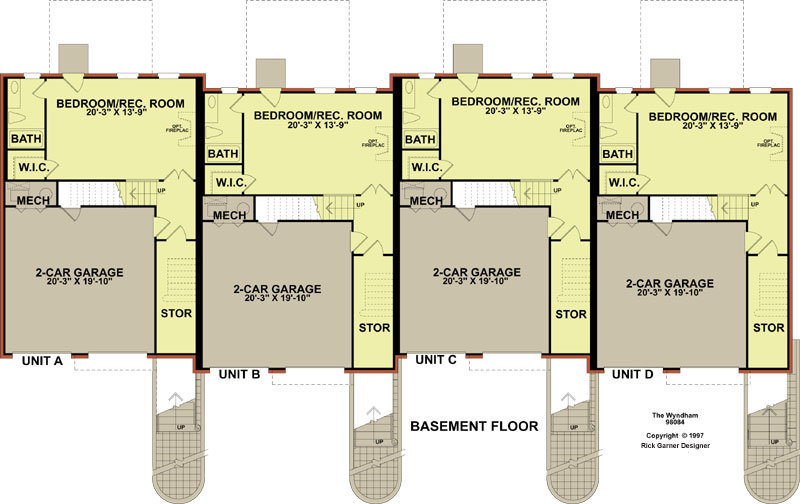

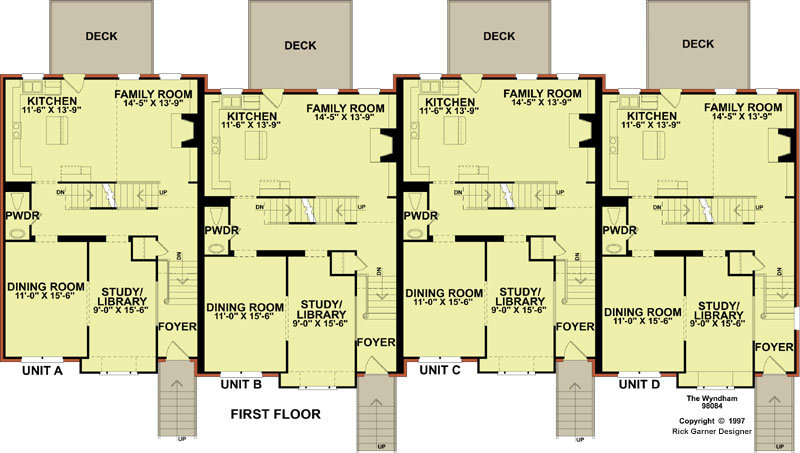

Private entries open to main-level living organized around the kitchen, family room, dining room, study or library, powder room, and rear deck. Upper levels introduce varied combinations of primary suites, secondary bedrooms, loft or study areas, sitting rooms, baths, and walk-in closets, while the lower level incorporates a flexible bedroom or recreation room, storage, mechanical space, and an attached two-car garage. Clear vertical circulation separates active living spaces from quieter bedroom zones, supporting privacy and intuitive movement. Repeated lower- and main-level planning, integrated garage parking, and disciplined square-footage use reinforce buildable value for builders, developers, investors, and multifamily development teams.

Plan Highlights

• Total Unit Count: 4 townhouses
• Unit Mix: Two 2-bedroom units, one 3-bedroom unit, and one 4-bedroom unit
• Beds: 2–4 per unit
• Baths: 2.5–3 per unit
• Stories: 3 per unit / 3 per building
• Ceiling Heights: 9′ main ceiling height
• Roof Pitch: 8:12
• Dimensions:
  • Width: 107′-2″
  • Depth: 42′-0″
• Private Entries and Outdoor Areas: Individual front entries and rear decks for all four residences
• Garages: Attached 2-car garage per unit / 8 total garage bays
• Foundation Type: Slab
• Square Footage:
  • Lower Level: 576 sq. ft. per unit
  • Main Level: 1,018 sq. ft. per unit
  • Upper Level: 804 sq. ft. per unit
  • Square Footage Per Unit: 2,398 sq. ft.
  • Total Square Footage: 9,773 sq. ft.

Important Information

Modifications Available. Thoughtful adjustments can help tailor this plan to your project, market, and building requirements.

Due to variations in soil conditions, climate, local codes, and site requirements, these construction documents are not engineered or sealed by an architect. Local professional review may be required before construction.
