99109

Description

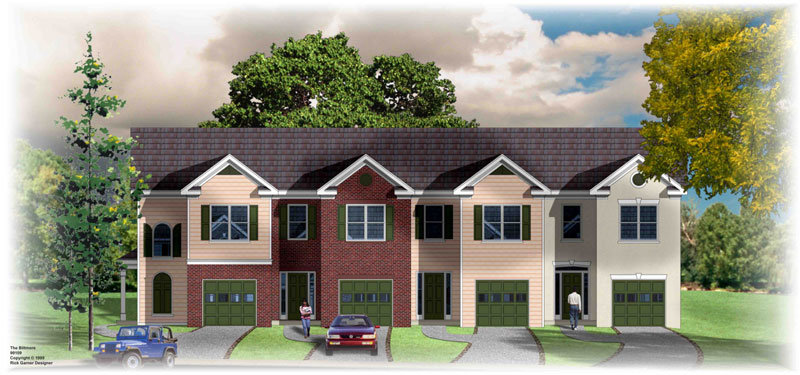

Balancing traditional streetscape character and a deliberately varied unit mix, this four-unit townhouse plan presents a practical attached-housing opportunity for developers seeking consistency without limiting resident choice. One two-bedroom end residence complements three three-bedroom homes, broadening the program while preserving a cohesive architectural identity. Each two-story unit provides two-and-a-half baths, a private entry, and a rear patio, while alternating gables, brick and siding accents, shutters, and individualized entry treatments create the residential presence valued in market-facing multifamily development.

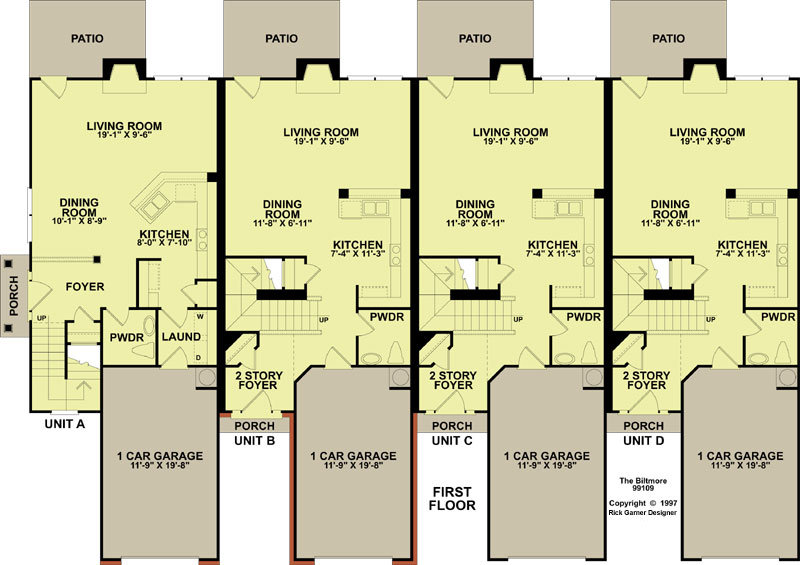

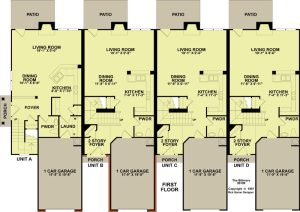

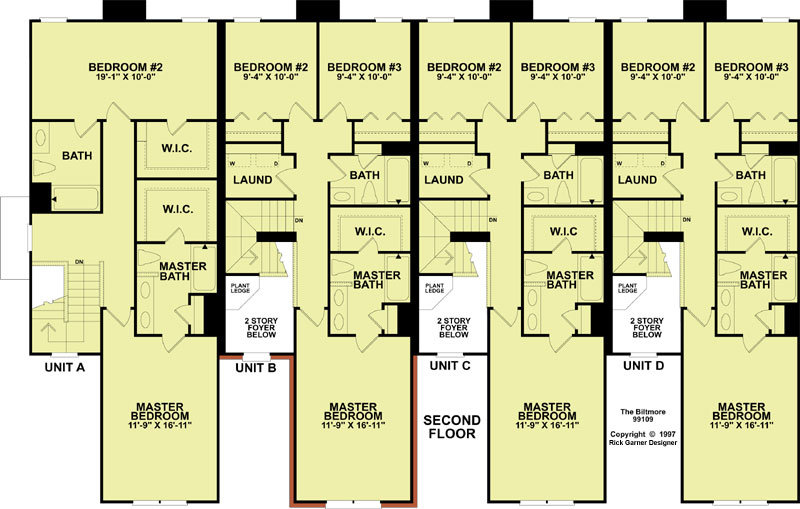

Inside, the floor plans are organized for intuitive movement from the foyer to dining, kitchen, living, and outdoor spaces while reserving the upper level for bedrooms and full baths. The two-bedroom unit places laundry on the main level, while the three-bedroom residences position laundry near the bedroom level and incorporate attached one-car garages. Repeated planning across the larger units supports unit efficiency and practical construction logic, while the differentiated end residence expands rental housing appeal. Approximately 1,401 square feet per unit and a 5,643-square-foot total building area reinforce disciplined square-footage use, buildable value, and long-term suitability for builders, investors, and multifamily development teams.

Plan Highlights

• Total Unit Count: 4 townhouse residences
• Unit Mix: One 2-bedroom residence and three 3-bedroom residences
• Baths: 2.5 per unit
• Stories: 2 per unit; 2 per building
• Main Ceiling Height: 9′
• Roof Pitch: 6:12
• Dimensions:
  • Width: 79′-8″
  • Depth: 52′-0″
• Private Outdoor Areas: Individual covered entries and rear patios for all four residences
• Parking: Attached 1-car garages serving three residences
• Foundation Type: Slab
• Square Footage Per Floor: 631–638 sq. ft. per unit on the first floor; 763–809 sq. ft. per unit on the second floor
• Square Footage Per Unit: Approximately 1,401 sq. ft.
• Total Square Footage: 5,643 sq. ft.

Important Information

Modifications Available. Thoughtful adjustments can help tailor this plan to your project, market, and building requirements.

Due to variations in soil conditions, climate, local codes, and site requirements, these construction documents are not engineered or sealed by an architect. Local professional review may be required before construction.
