A001

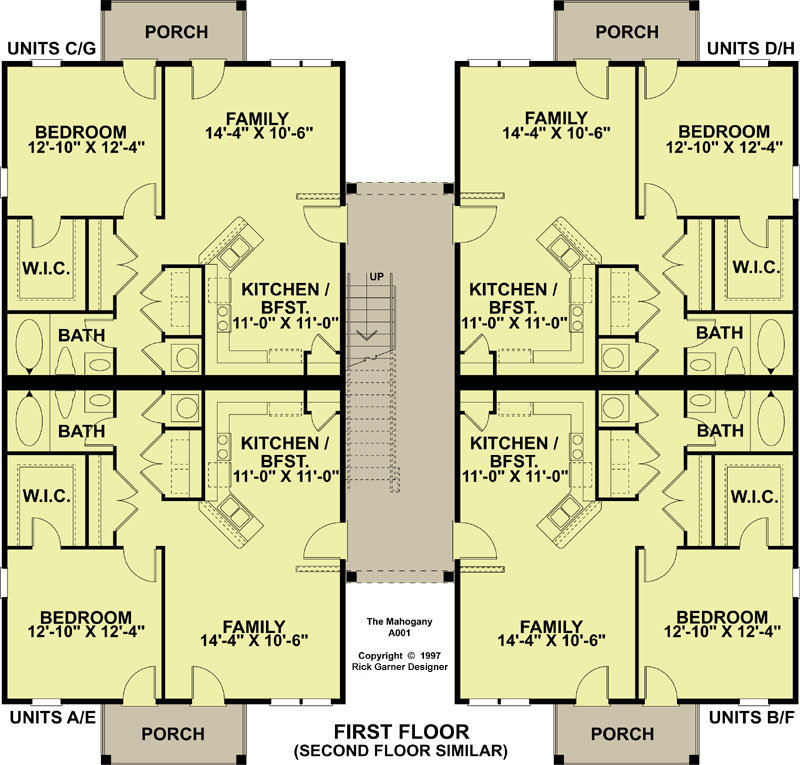

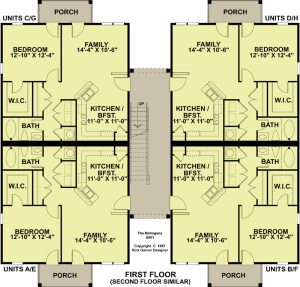

Floorplan 1
A001
PDF – Single Build
Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.
Description

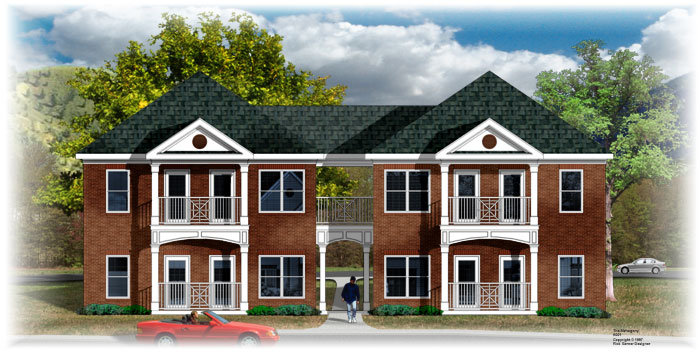

8 Unit 1 Bedroom Apartment Building.
Notice: Single Use Notice: Single Use License Required Prior to Shipping. Multi Use License Available.
*Ask about our Multifamily Developer Special Incentives.
Due to Variations in Soil Conditions, Climate and Local Codes, Stock Plans are not Engineered nor Sealed by an Architect.
CAD Files Available Upon Purchase of Unlimited Use License. Call for Pricing. 877.737.5267
High Quality Artwork Provided Upon Request With Each Purchase For Your Advertising and Marketing.
| Designer Plan Number | A001A001 |
|---|---|
| Bedrooms Per Unit | 1 |
| Bathrooms per Unit | 1 |
| Plan Width | 65 ' 8 " |
| Plan Depth | 63 ' 0 " |
| Main Ceiling | 9 ' 0 " |
| 2nd Ceiling | 0 ' 0 " |
| Slab Foundation | yes |
| Roof Pitch | 4 in 12 |
|---|---|
| 2nd Roof Pitch | 12 in 12 |
| Building Floors | 2 |
| Unit Floors | 1 |
| First Floor Area | 741 sq.ft |
| 2nd Floor Area | 741 sq.ft |
| Total Living Area | 741 sq.ft |
| Total Plan Area | 5928 sq.ft |
