A2001BR16

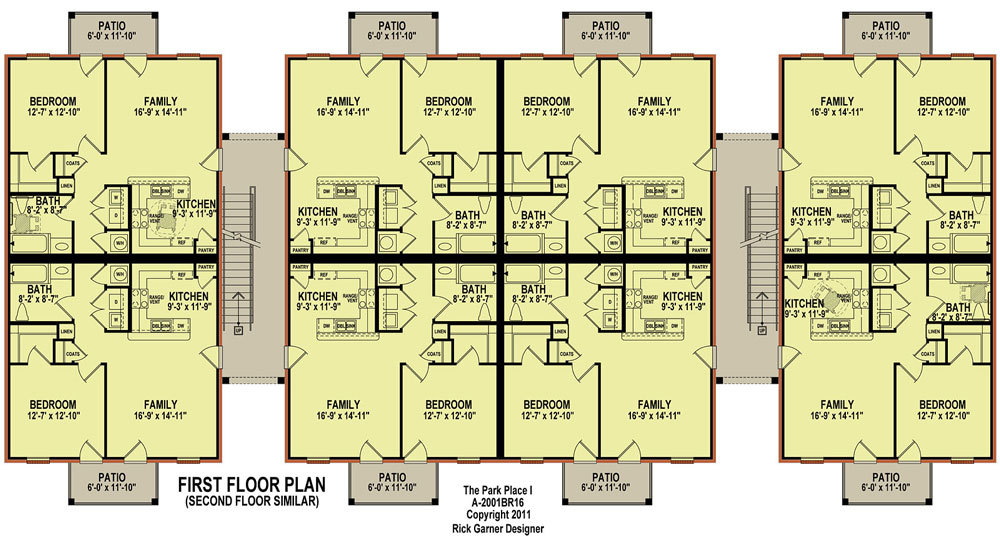

Floorplan 1
A2001BR16
PDF – Single Build
Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.
Description

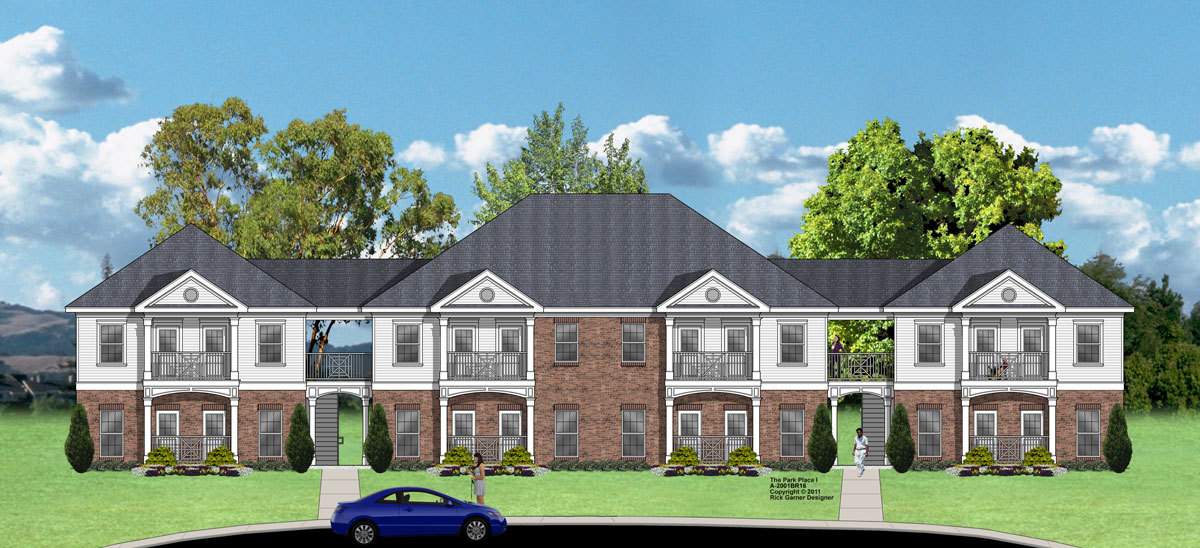

16 Unit, Handicap Accessible,One bedroom Apartment Building perfect for a wide range of clientele. Part of the Park Place Collection featuring full range of one, two and three bedroom plans and options
Notice: Single Use License Required Prior to Shipping.
*Ask about our Multifamily Developer Special Incentives.
Multi-Use License Available.
CAD Files Available Upon Purchase of Unlimited Use License. Call for Pricing. 877.737.5267
High Quality Artwork Provided With Each Purchase For Your Advertising and Marketing.
| Designer Plan Number | A2001BR16A2001BR16 |
|---|---|
| Bedrooms Per Unit | 0 |
| Bathrooms per Unit | 0 |
| Plan Width | 130 ' 0 " |
| Plan Depth | 65 ' 0 " |
| Main Ceiling | 9 ' 0 " |
| 2nd Ceiling | 0 ' 0 " |
| Slab Foundation | yes |
| Roof Pitch | 6 in 12 |
|---|---|
| 2nd Roof Pitch | 8 in 12 |
| Building Floors | 2 |
| Unit Floors | 1 |
| First Floor Area | 772 sq.ft |
| 2nd Floor Area | 772 sq.ft |
| Total Living Area | 772 sq.ft |
| Total Plan Area | 14650 sq.ft |
