A3701-B

A3701-B

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$500.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

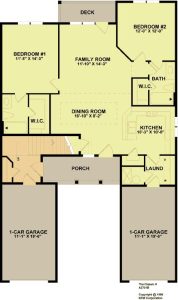

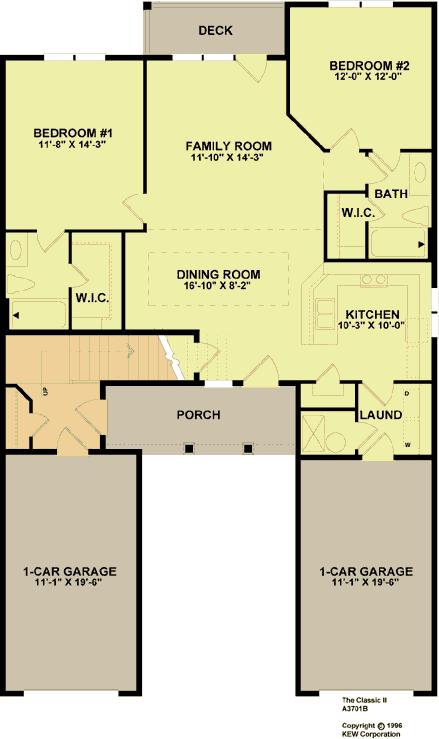

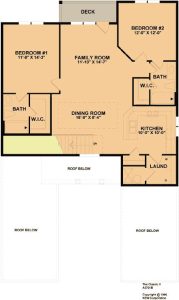

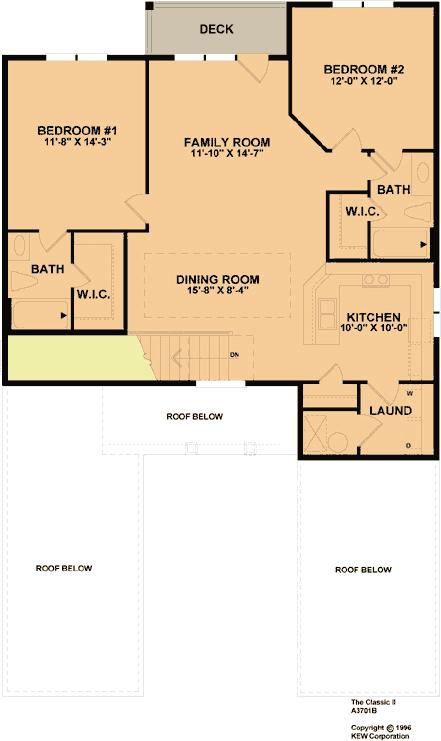

A3701-B Floorplan 1

Description

Notice: Single Use License Required Prior to Shipping.

Designer Plan Number A3701-BA3701-B
Bedrooms Per Unit 2
Bathrooms per Unit 2
Plan Width 37 ' 0 "
Plan Depth 58 ' 10 "
Main Ceiling 9 ' 0 "
2nd Ceiling 0 ' 0 "
Slab Foundation yes
Roof Pitch 10 in 12
Building Floors 2
Unit Floors 1
First Floor Area 1131 sq.ft
2nd Floor Area 1177 sq.ft
Total Living Area 1131 sq.ft
Total Plan Area 2308 sq.ft
Garage Bays Per unit 1
Garage Type Attached
