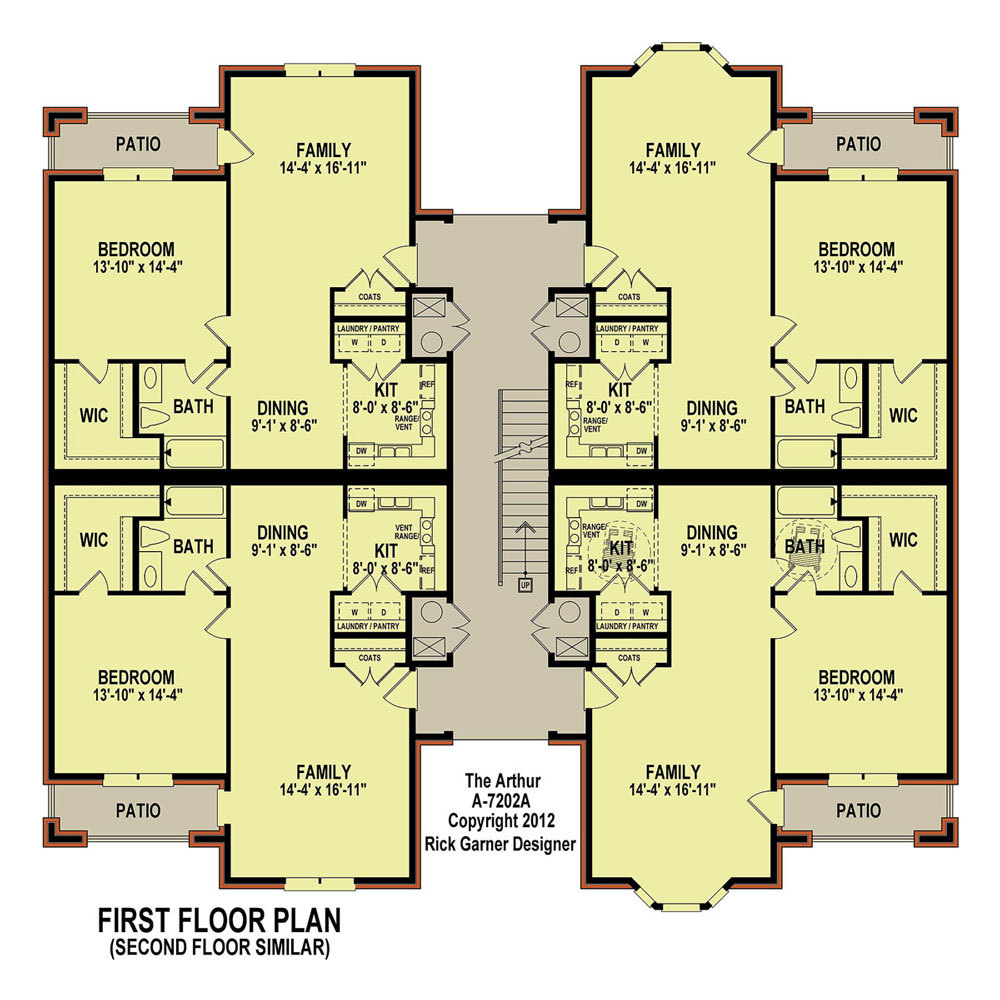

A7202A Floorplan 1

Description

8 Unit, ADA Compliant, One bedroon, Two Story, Open Breezeway Apartment Building

Notice: Single Use License Required Prior to Shipping. Multi Use License Available.

*Ask about our Multifamily Developer Special Incentives.

Due to Variations in Soil Conditions, Climate and Local Codes, Stock Plans are not Engineered nor Sealed by an Architect.

CAD Files Available Upon Purchase of Unlimited Use License. Call for Pricing. 877.737.5267

High Quality Artwork Provided Upon Request With Each Purchase For Your Advertising and Marketing.

Designer Plan Number A7202AA7202A
Bedrooms Per Unit 1
Bathrooms per Unit 1
Plan Width 73 ' 2 "
Plan Depth 70 ' 0 "
Main Ceiling 9 ' 0 "
2nd Ceiling 0 ' 0 "
Slab Foundation yes
Roof Pitch 12 in 12
2nd Roof Pitch 6 in 12
Building Floors 2
Unit Floors 1
First Floor Area 863 sq.ft
2nd Floor Area 863 sq.ft
Total Living Area 863 sq.ft
Total Plan Area 8452 sq.ft
