A7401

A7401

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$500.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification
A7401 Floorplan 1

Description

4 Unit, 3 Bedroom, Closed Breezeway Apartment Building.

Notice: Single Use License Required Prior to Shipping. Multi Use License Available.

*Ask about our Multifamily Developer Special Incentives.

Due to Variations in Soil Conditions, Climate and Local Codes, Stock Plans are not Engineered nor Sealed by an Architect.

CAD Files Available Upon Purchase of Unlimited Use License. Call for Pricing. 877.737.5267

High Quality Artwork Provided Upon Request With Each Purchase For Your Advertising and Marketing.

Designer Plan Number A7401A7401
Bedrooms Per Unit 3
Bathrooms per Unit 2
Plan Width 75 ' 8 "
Plan Depth 50 ' 4 "
Main Ceiling 9 ' 0 "
2nd Ceiling 0 ' 0 "
Slab Foundation yes
Roof Pitch 8 in 12
Building Floors 2
Unit Floors 1

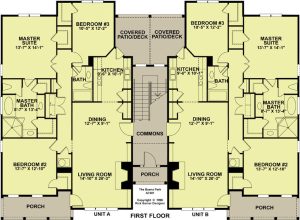

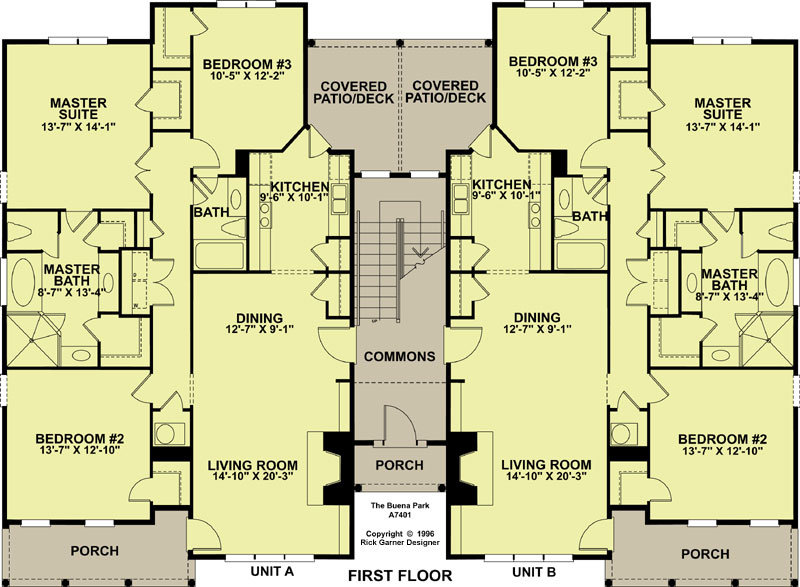

First Floor Area 1453 sq.ft

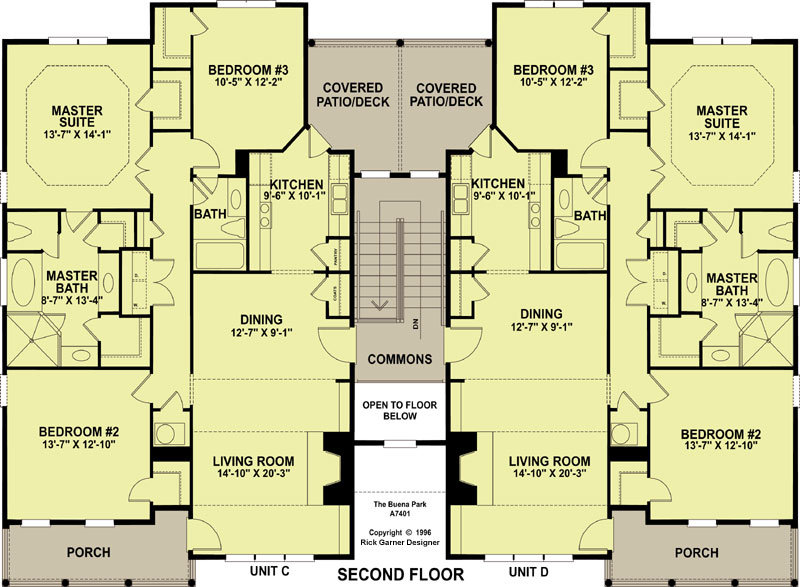

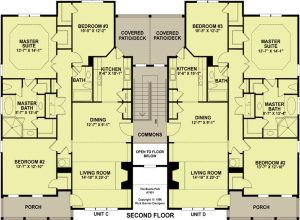

2nd Floor Area 1453 sq.ft
Total Living Area 1453 sq.ft
Total Plan Area 5812 sq.ft
