A9401-C

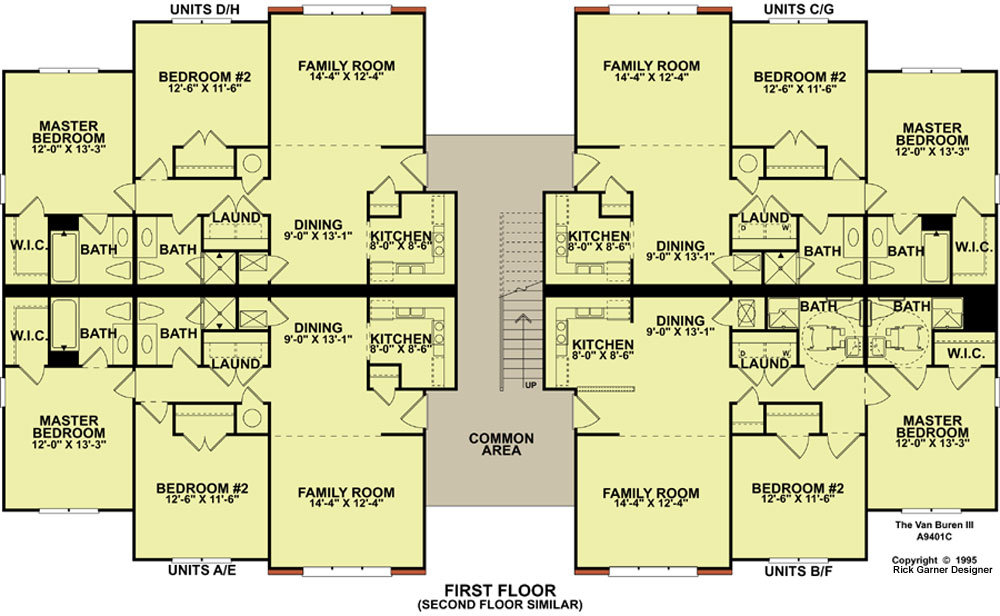

Floorplan 1
A9401-C
PDF – Single Build
Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.
Description
Notice: Single Use License Required Prior to Shipping.
| Designer Plan Number | A9401-CA9401-C |
|---|---|
| Bedrooms Per Unit | 2 |
| Bathrooms per Unit | 0 |
| Plan Width | 94 ' 0 " |
| Plan Depth | 62 ' 8 " |
| Main Ceiling | 9 ' 0 " |
| 2nd Ceiling | 0 ' 0 " |
| Slab Foundation | yes |
| Roof Pitch | 6 in 12 |
|---|---|
| 2nd Roof Pitch | 9 in 12 |
| Building Floors | 2 |
| Unit Floors | 1 |
| First Floor Area | 1003 sq.ft |
| Total Living Area | 1003 sq.ft |
| Total Plan Area | 8024 sq.ft |
