A9402-A

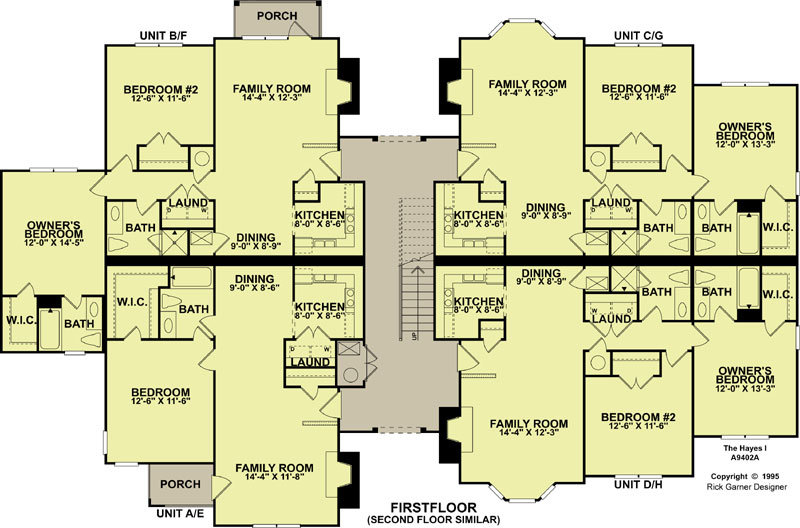

Floorplan 1
A9402-A
PDF – Single Build
Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.
Description
8 Unit, One, Two and Three Bedrooms, Open Breezeway Apartment Building offering many options perfect for a wide range of clientele.
Notice: Single Use License Required Prior to Shipping. Multi Use License Available.
*Ask about our Multifamily Developer Special Incentives.
Due to Variations in Soil Conditions, Climate and Local Codes, Stock Plans are not Engineered nor Sealed by an Architect.
CAD Files Available Upon Purchase of Unlimited Use License. Call for Pricing. 877.737.5267
High Quality Artwork Provided Upon Request With Each Purchase For Your Advertising and Marketing.
| Designer Plan Number | A9402-AA9402-A |
|---|---|
| Bedrooms Per Unit | 2 |
| Bathrooms per Unit | 2 |
| Plan Width | 94 ' 0 " |
| Plan Depth | 62 ' 0 " |
| Main Ceiling | 9 ' 0 " |
| 2nd Ceiling | 0 ' 0 " |
| Slab Foundation | yes |
| Roof Pitch | 6 in 12 |
|---|---|
| 2nd Roof Pitch | 9 in 12 |
| Building Floors | 2 |
| Unit Floors | 1 |
| First Floor Area | 819 sq.ft |
| 2nd Floor Area | 819 sq.ft |
| Total Living Area | 819 sq.ft |
| Total Plan Area | 7726 sq.ft |
