A9403-A

A9403-A

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$3,800.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

This 8-unit apartment plan gives your four units on each of its two floors.

  • Unit A, the front-left unit, gives you 819 square feet with one bed and one bath.
  • Unit B, the front-right unit, gives you 1,015 square feet with two beds and two baths.
  • Unit C, the top-left unit, gives you 1,239 square feet and three beds and two baths.
  • Unit D, the top-right unit, gives you 1,015 square feet with two beds and two baths.
  • A central stairwell separates the left units from the right. Units A and D have porches off the family rooms.
  • The main roof pitch is 6:12 and the secondary pitch is 9:12

Notice: Single Use License Required Prior to Shipping. Multi Use License Available.

*Ask about our Multifamily Developer Special Incentives.

Due to Variations in Soil Conditions, Climate and Local Codes, Stock Plans are not Engineered nor Sealed by an Architect.

Designer Plan Number A9403
Bedrooms Per Unit 3
Bathrooms per Unit 2
Slab Foundation yes
Roof Pitch 6 in 12
Building Floors 2
Unit Floors 1
First Floor Area 4088 sq.ft
2nd Floor Area 4088 sq.ft
Total Living Area 8176 sq.ft
Total Plan Area 8176 sq.ft

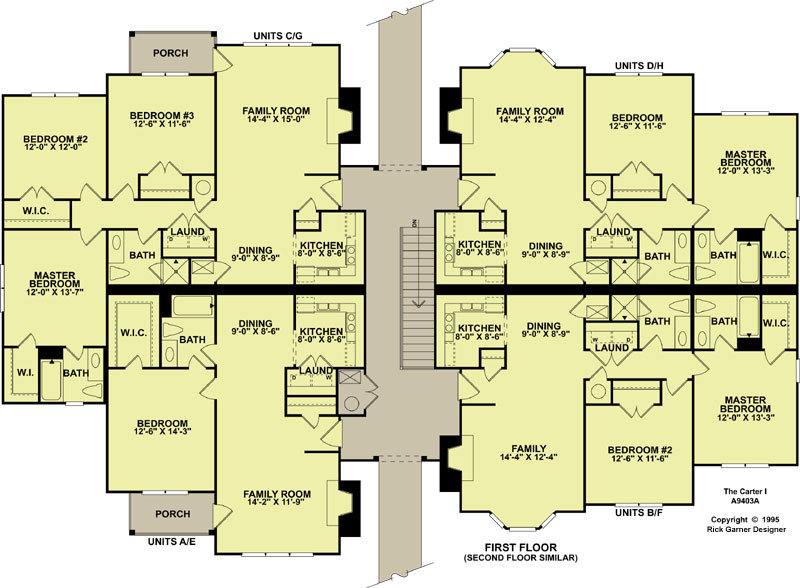

A9403-A Floorplan 1
