Apartment Building Plan

A9802

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,650.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

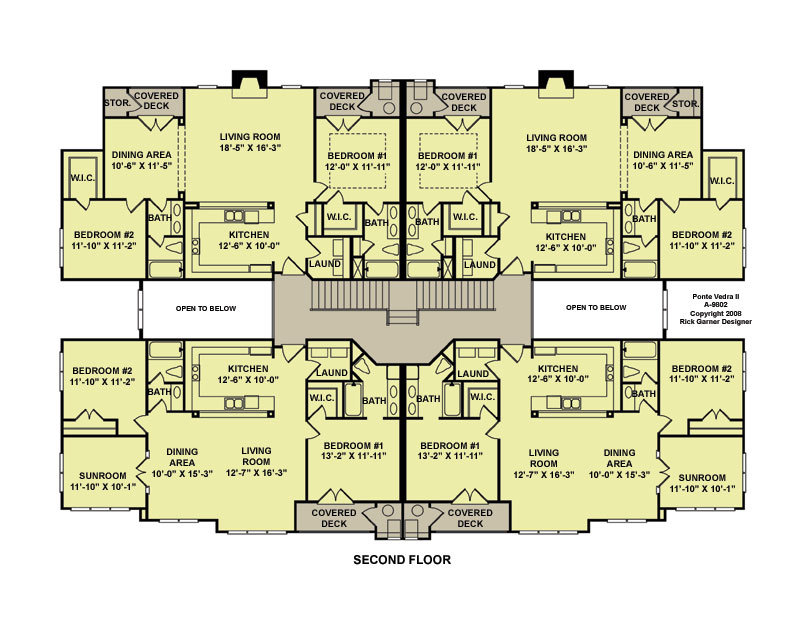

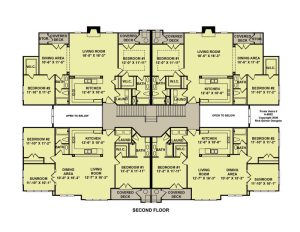

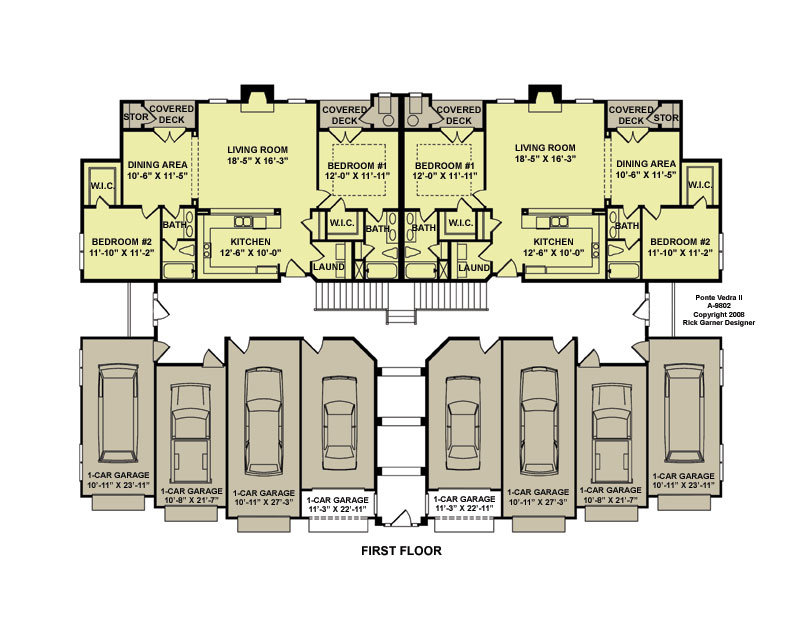

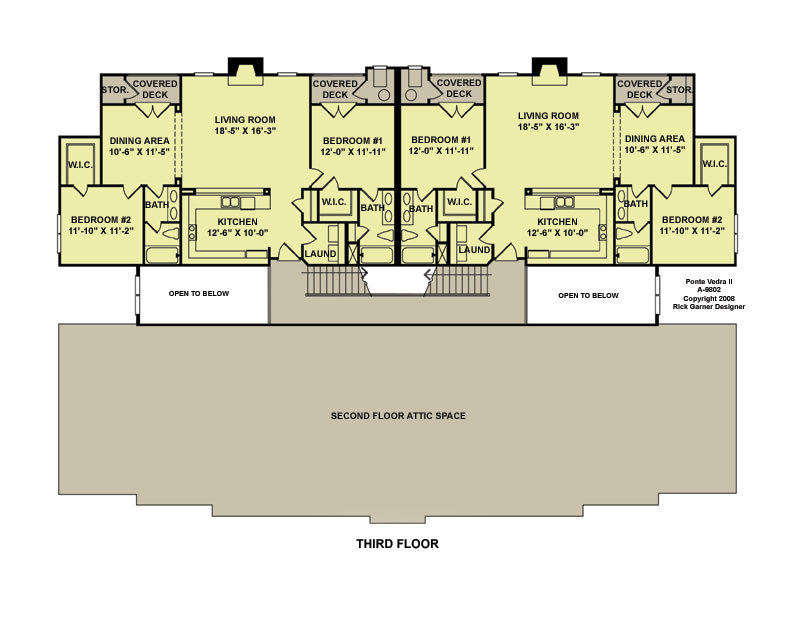

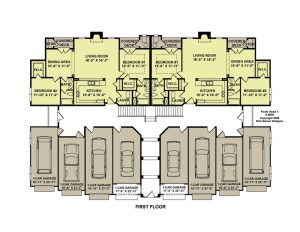

Unit Apartment Building with 2 units on the First Floor, Four Units on Second Floor and Two units on the Third Floor.

Notice: Single Use License Required Prior to Shipping. Multi Use License Available.

*Ask about our Multifamily Developer Special Incentives.

Due to Variations in Soil Conditions, Climate and Local Codes, Stock Plans are not Engineered nor Sealed by an Architect.

CAD Files Available Upon Purchase of Unlimited Use License. Call for Pricing. 877.737.5267

High Quality Artwork Provided Upon Request With Each Purchase For Your Advertising and Marketing.

Designer Plan Number A9802A9802
Bedrooms Per Unit 2
Bathrooms per Unit 2
Slab Foundation yes
Roof Pitch 6 in 12
2nd Roof Pitch 12 in 12
Building Floors 3
Unit Floors 1
First Floor Area 1202 sq.ft
2nd Floor Area 1202 sq.ft
Total Living Area 1202 sq.ft
Total Plan Area 11279 sq.ft
Garage Bays Per unit 1
Garage Type Attached
A9802 Floorplan 1
