S31036

S31036

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,650.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

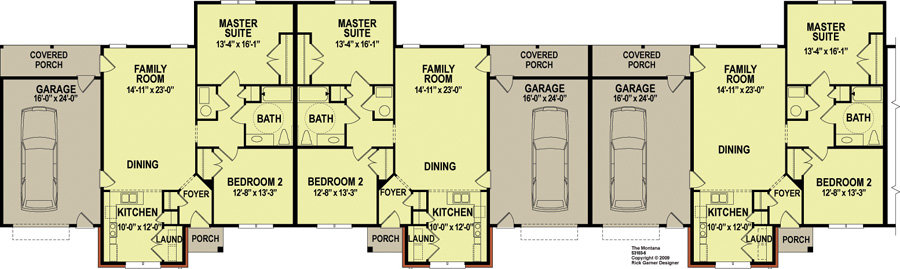

S31036 Floorplan 1

Description

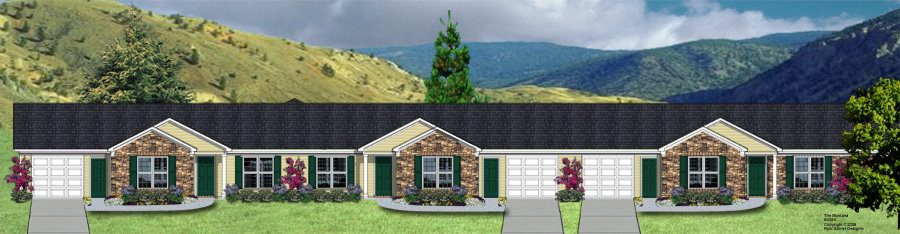

6 Unit 2 Bedroom-1 Bath Design featuring garage parking.

Notice: Single Use License Required Prior to Shipping.

*Ask about our Multifamily Developer Special Incentives.

Multi-Use License Available.

CAD Files Available Upon Purchase of Unlimited Use License. Call for Pricing. 877.737.5267

High Quality Artwork Provided With Each Purchase For Your Advertising and Marketing.

Designer Plan Number S31036S31036
Bedrooms Per Unit 2
Bathrooms per Unit 1
Plan Width 304 ' 0 "
Plan Depth 42 ' 0 "
Main Ceiling 8 ' 0 "
2nd Ceiling 0 ' 0 "
Slab Foundation yes
Foundation Crawl Space yes
Roof Pitch 6 in 12
Building Floors 1
Unit Floors 1
First Floor Area 1094 sq.ft
Total Living Area 1094 sq.ft
Total Plan Area 10130 sq.ft
Garage Bays Per unit 1
Garage Type Attached
