S3402

S3402

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,650.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

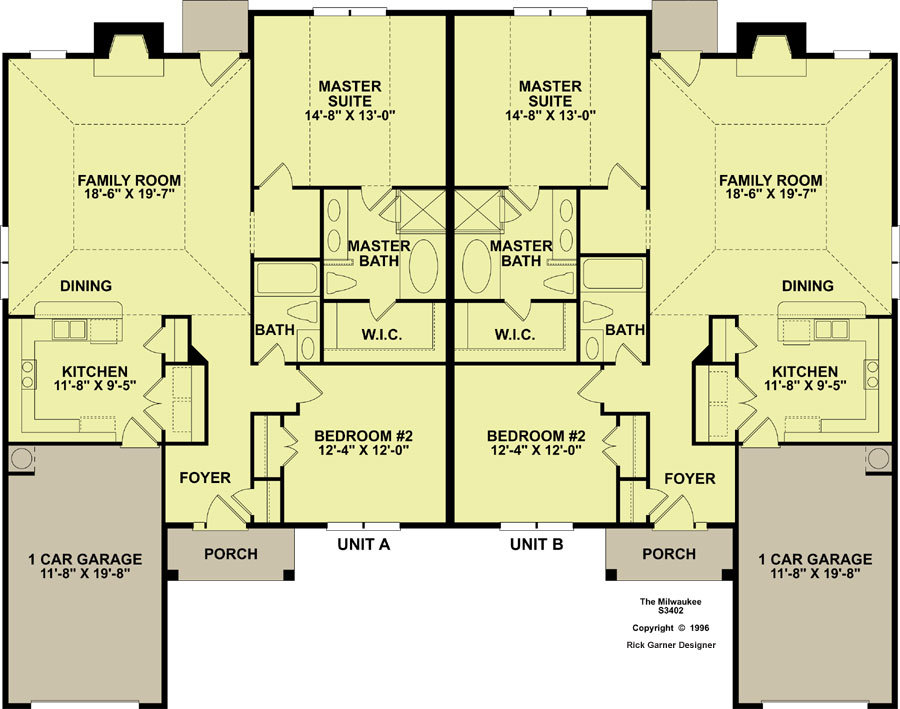

S3402 Floorplan 1

Description

The Milwaukee

Designer Plan Number S3402S3402
Bedrooms Per Unit 2
Bathrooms per Unit 2
Plan Width 68 ' 6 "
Plan Depth 53 ' 6 "
Main Ceiling 9 ' 0 "
2nd Ceiling 0 ' 0 "
Slab Foundation yes
Roof Pitch 8 in 12
Building Floors 1
Unit Floors 1
First Floor Area 1220 sq.ft
Total Living Area 1220 sq.ft
Total Plan Area 2440 sq.ft
Garage Bays Per unit 1
Garage Type Attached
